ACT6358 - 40V Step-Up WLED Bias Supply

Description

The ACT6358 step-up DC/DC converter drives white LEDs with an externally programmable constant current.

Features

  • High-Efficiency DC/DC WLED Bias Supply.
  • Internal 40V, 0.55Ω Power MOSFET.
  • Up to 10 WLEDs per String.
  • 1A Peak Current.
  • Supports Analog and PWM LED Dimming.
  • Integrated Over-Voltage Protection (OVP).
  • Programmable Soft-Start Function.
  • Thermal Shutdown.
  • Cycle-by-Cycle Over Current Protection.
  • Tiny TDFN33-8 Package.

📥 Download Datasheet

Datasheet Details

Part number ACT6358
Manufacturer Qorvo
File Size 801.56 KB
Description 40V Step-Up WLED Bias Supply
Datasheet download datasheet ACT6358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACT6358 40V Step-Up WLED Bias Supplies Active-Semi
ACT6357 40V Step-Up WLED Bias Supplies Active-Semi
ACT6359 40V Step-Up WLED Bias Supplies Active-Semi
ACT6305 Low Input High Efficiency Synchronous Step-Up DC/DC Converter Active-Semi
ACT6308 Low Input High Efficiency Synchronous Step-Up DC/DC Converter Active-Semi

Other Datasheets by Qorvo

Part Number Description
ACT6358NH-T 40V Step-Up WLED Bias Supply
ACT6311 White LED/OLED Step-Up Converter
ACT6311UC-T White LED/OLED Step-Up Converter
ACT6391 2.5A PWM Step-Up DC/DC Converter
ACT6391MH-T 2.5A PWM Step-Up DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

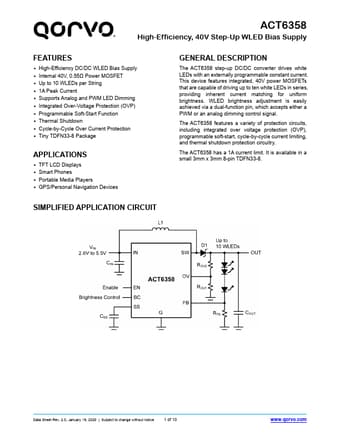

ACT6358 High-Efficiency, 40V Step-Up WLED Bias Supply FEATURES • High-Efficiency DC/DC WLED Bias Supply • Internal 40V, 0.55Ω Power MOSFET • Up to 10 WLEDs per String • 1A Peak Current • Supports Analog and PWM LED Dimming • Integrated Over-Voltage Protection (OVP) • Programmable Soft-Start Function • Thermal Shutdown • Cycle-by-Cycle Over Current Protection • Tiny TDFN33-8 Package APPLICATIONS • TFT LCD Displays • Smart Phones • Portable Media Players • GPS/Personal Navigation Devices SIMPLIFIED APPLICATION CIRCUIT GENERAL DESCRIPTION The ACT6358 step-up DC/DC converter drives white LEDs with an externally programmable constant current.
