QSE773 PLASTIC SILICON PIN PHOTODIODE

QSE773 Description

QSE773 PLASTIC SILICON PIN PHOTODIODE PACKAGE DIMENSIONS 0.215 (5.46) 0.199 (5.06) .

QSE773 Features

* Daylight Filter
* Sidelooker Package
* Pin Photodiode
* Wide Reception Angle, 120°
* Chip Size = .1072 inches (2.712 mm) C L 0.311 (7.90) 0.288 (7.30) 0.126 (3.20) 0.110 (2.80) SCHEMATIC 0.610 (15.49) MIN ANODE CATHODE 0.060 (1.52) 0.020 (0.51) SQ. (2x)

📥 Download Datasheet

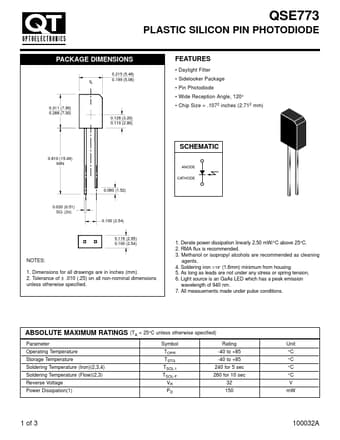

Preview of QSE773 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QSE773
Manufacturer
QT Optoelectronics
File Size
65.64 KB
Datasheet
QSE773_QTOptoelectronics.pdf
Description
PLASTIC SILICON PIN PHOTODIODE
