QL2003 - Low Cost and Flexibility

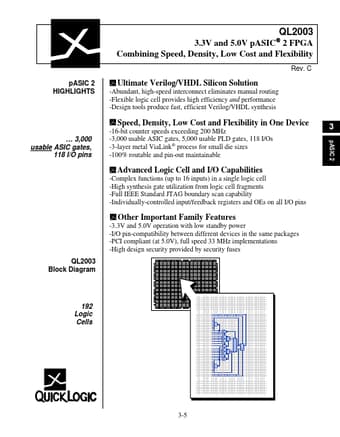

QL2003 Datasheet Preview — Preview of QL2003 PDF

Datasheet Details

Part number	QL2003
Manufacturer	QL
File Size	236.38 KB
Description	Low Cost and Flexibility
Datasheet	QL2003_QL.pdf

QL2003 Product details

Description

Pin TDI TRSTB TMS TCK TDO STM I/ACLK I/GCLK I I/O VCC GND Function Test Data In for JTAG Active low Reset for JTAG Test Mode Select for JTAG Test Clock for JTAG Test data out for JTAG Special Test Mode High-drive input and/or array network driver High-drive input and/or global network driver High-drive input Input/Output pin Power supply pin Ground pin Description Hold HIGH during normal operation.

Features

-3.3V and 5.0V operation with low standby power -I/O pin-compatibility between different devices in the same packages -PCI compliant (at 5.0V), full speed 33 MHz implementations -High design security provided by security fuses QL2003 Block Diagram 192 Logic Cells 3-5 QL2003.
