P24C128 - I2C-Compatible Serial E2PROM

Datasheet Summary

Description

The P24C128 is a 128-Kbit I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device.

It contains a memory array of 16 K × 8 bits, which is organized in 64-byte per page.

P24C128 provides the following devices for different application.

Features

  • Single Supply Voltage and High Speed.
  • Minimum operating voltage down to 1.7V.
  • 1 MHz clock from 2.5V to 5.5V.
  • 400kHz clock from 1.7V to 2.5V.
  • Low power CMOS technology.
  • Read current 400uA, maximum.
  • Write current 1.6mA, maximum.
  • Schmitt Trigger, Filtered Inputs for Noise Suppression.
  • Sequential & Random Read Features.
  • 64 byte Page Write Modes, Partial Page Wri.

📥 Download Datasheet

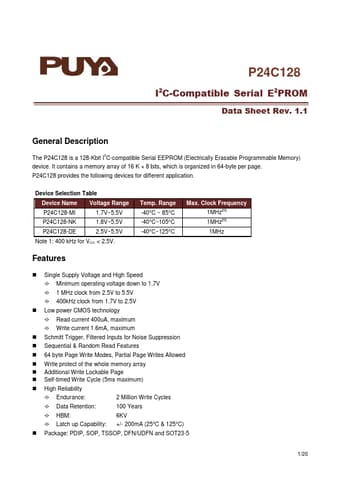

Datasheet preview – P24C128

Datasheet Details

Part number P24C128
Manufacturer Puya
File Size 822.33 KB
Description I2C-Compatible Serial E2PROM
Datasheet download datasheet P24C128 Datasheet
Additional preview pages of the P24C128 datasheet.

📁 Similar Datasheet

  • P2400AA61L - SIDACtor Device (Littelfuse)
  • P2402CAG - N-Channel MOSFET (VBsemi)
  • P2402OV - N&P-Channel MOSFET (UNIKC)
  • P2405 - Resin coating.dual type (Hamamatsu Corporation)
  • P240D2 - Solid-State Relays (OPTO22)
  • P240D4 - Solid-State Relays (OPTO22)
  • P240FZ4QLA - Power MOSFET (Shindengen)
  • P240FZ4QNKA - N-channel Power MOSFETs (Shindengen)
  • P24701 - OLED (Iexcellence)
  • P2478-01 - Resin coating.dual type (Hamamatsu Corporation)
Other Datasheets by Puya
  • P24C128B - I2C-Compatible Serial E2PROM
  • P24C128D - I2C-Compatible Serial E2PROM
  • P24C128E - I2C-Compatible Serial E2PROM
  • P24C16C - I2C-Compatible Serial E2PROM
  • P24C02A - I2C-Compatible Serial E2PROM
  • P24C02C - I2C-Compatible Serial E2PROM
  • P24C04C - I2C-Compatible Serial E2PROM
  • P24C08C - I2C-Compatible Serial E2PROM

Full PDF Text Transcription

Click to expand full text
P24C128 I2C-Compatible Serial E2PROM Data Sheet Rev. 1.1 General Description The P24C128 is a 128-Kbit I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 16 K × 8 bits, which is organized in 64-byte per page. P24C128 provides the following devices for different application. Device Selection Table Device Name Voltage Range P24C128-MI 1.7V~5.5V P24C128-NK 1.8V~5.5V P24C128-DE 2.5V~5.5V Note 1: 400 kHz for VCC < 2.5V. Temp. Range -40°C ~ 85°C -40°C~105°C -40°C~125°C Max. Clock Frequency 1MHz[1] 1MHz[1] 1MHz Features  Single Supply Voltage and High Speed  Minimum operating voltage down to 1.7V  1 MHz clock from 2.5V to 5.5V  400kHz clock from 1.7V to 2.
