AND114Y - Standard LED

Features

  • Low power requirement.
  • Flush-mount.
  • All plastic molded lens.
  • Color: GaAsP.
  • Yellow.
  • RoHS Compliant Optical Characteristics (Ta = 25°C) Color LED Lens Lens Desc. Axial Luminous Intensity (mcd) Min. Typ. Test Condition (IF.
  • mA) Yellow Yellow Diffused 5 18 10 Viewing Angle 2θ1/2 (deg) 60 (1) 0.5 1.5 26.5 7.6 2.5 max including resin Absolute Maximum Ratings (Ta = 25°C) 0.5 2.54 Cathode Index 12 1. Anode 2. Cathode Char.

📥 Download Datasheet

Datasheet Details

Part number AND114Y
Manufacturer Purdy Electronics
File Size 80.15 KB
Description Standard LED
Datasheet download datasheet AND114Y Datasheet

📁 Similar Datasheet

  • AND124G - Standard LED T-1 Package (AND)
  • AND180CRP - GaAlAs Red Light Emission T-1 3/4 Package (AND)
  • AND185HAP - InGaAlP High Brightness Amber Light Emission T-1 3/4 Package (AND)
  • AND185HOP - InGaAlP High Brightness Orange Light (Purdy Electronics Corporation)
  • AND190CRP - Ultra Bright LED Lamps GaAlAs Red Light Emission T-3 Package (AND)
  • AND190GCP - GaP Green Light Emission (Purdy Electronics Corporation)
  • AND190HW - Ultra Bright LED Lamps (AND)
  • AND-C-106 - Dipole Antenna for PCN (Tyco Electronics)
  • AND-C-108 - 902-928 MHz Dipole Antenna (Tyco Electronics)
  • AND2 - CMOS Gate Array (AMI)
Other Datasheets by Purdy Electronics

Full PDF Text Transcription

Click to expand full text

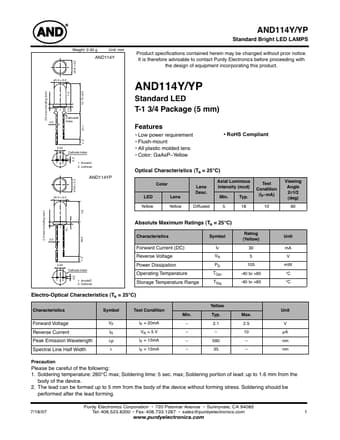

Weight: 0:30 g Unit: mm AND114Y AND114Y/YP Standard Bright LED LAMPS Product specifications contained herein may be changed without prior notice. It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product. ø5.8 ± 0.2 2.5 max including resin ø5.0 ± 0.2 (1) 7.6 12.75 ±0.5 Cathode 0.5 Index 1.5 21.1 2.54 Cathode Index 0.5 12 1. Anode 2. Cathode AND114YP ø5.8 ± 0.2 ø5.0 ± 0.2 AND114Y/YP Standard LED T-1 3/4 Package (5 mm) Features • Low power requirement • Flush-mount • All plastic molded lens • Color: GaAsP–Yellow • RoHS Compliant Optical Characteristics (Ta = 25°C) Color LED Lens Lens Desc. Axial Luminous Intensity (mcd) Min. Typ.
