Green Optical Characteristics (Ta = 25°C)
Color LED Green Lens Green Clear Lens Desc. Axial Luminous Intensity (mcd) Min. 20 Typ. 50 Test Condition (IF.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

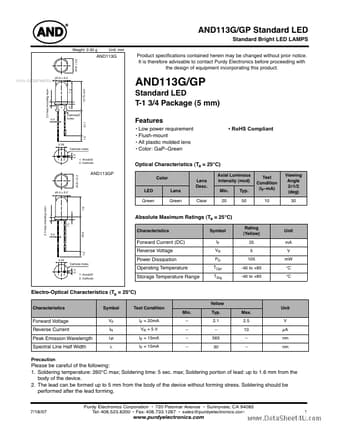

AND113G/GP Standard LED
Standard Bright LED LAMPS
Weight: 0:30 g
ø5.8 ± 0.2
Unit: mm
AND113G
Product specifications contained herein may be changed without prior notice. It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product.
www.datasheet4u.com
2.5 max including resin
ø5.0 ± 0.2
AND113G/GP
12.75 ±0.5 7.6 (1)
Standard LED T-1 3/4 Package (5 mm)
Features
• Low power requirement • Flush-mount • All plastic molded lens • Color: GaP–Green Optical Characteristics (Ta = 25°C)
Color LED Green Lens Green Clear Lens Desc. Axial Luminous Intensity (mcd) Min. 20 Typ. 50 Test Condition (IF–mA) 10 Viewing Angle 2θ1/2 (deg) 30
0.5
Cathode Index
21.1
• RoHS Compliant
2.54 Cathode Index
1
2
0.5
1. Anode 2. Cathode
1.
