H1100 (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS

Pulse

H1100 Description

10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS With Various Turns Ratios RoHS-5 peak reflow temperature rating 235°C RoHS-6 peak reflow temperature .

H1100 Applications

* Electrical Specifications @ 25°C
* Operating Temperature 0°C to 70°C RoHS-5 4 Compliant Part Number H1100 H1101 H1102 H1121 H1183 H1199 HX1188 1 HX1198 1 H1302 RoHS-6 5 Turns Ratio Compliant Part Number TX RX H1100NL3a 2:1 1:1 H1101NL3a 1.25:1 1:1 H1102NL3a 1:1 1:1 H1121NL3c 1:1.414 1:1 H118

📥 Download Datasheet

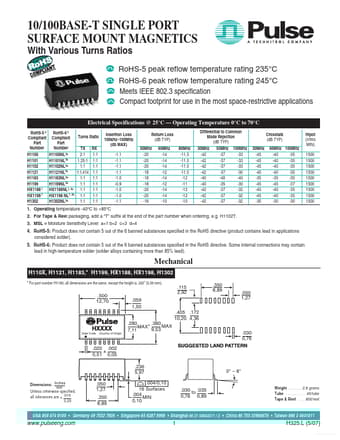

H1100 Datasheet Preview — Preview of H1100 PDF

Datasheet Details

Part number: H1100
Manufacturer: Pulse
File Size: 123.72 KB
Datasheet: H1100-Pulse.pdf
Description: (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS
