GBLC05C - ULTRA LOW CAPACITANCE TVS ARRAY

Download the GBLC05C datasheet PDF (GBLC03 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra low capacitance tvs array.

Description

The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones.

Features

  • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge.
  • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge).
  • 350 Watts Peak Pulse Pow.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBLC03-ProtekDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBLC05C
Manufacturer Protek Devices
File Size 346.94 KB
Description ULTRA LOW CAPACITANCE TVS ARRAY
Datasheet download datasheet GBLC05C Datasheet

📁 Similar Datasheet

  • GBLC05C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC05 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC03 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC03C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC08 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC08C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC12 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC12C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC15 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC15C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
Other Datasheets by Protek Devices
  • GBLC05CDN - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05CI - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05CIDFN - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05 - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05I - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03 - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03C - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03CI - ULTRA LOW CAPACITANCE TVS ARRAY

Full PDF Text Transcription

Click to expand full text

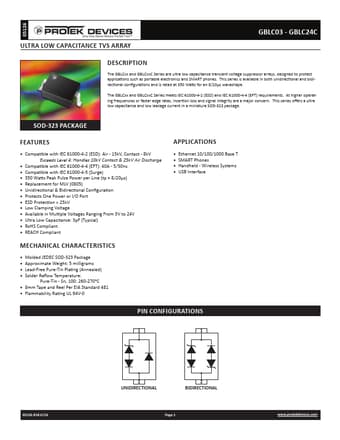

05126 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE TVS ARRAY GBLC03 - GBLC24C DESCRIPTION The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The GBLCxx and GBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
