PT3639 - Hi-sensitivity Unipolar Hall Switch

Features

  • 3.8V to 24V wide operation voltage High accuracy unipolar switch Dynamic offset cancellation Open drain output Low thermal drift magnetic sensing SOT23-3L (LH) Ordering information PT3639-PA-T Package(PA):UA or LH or LT Temperature(T): A or K SOT89-3L (LT) Specifications Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Maximum supply voltage Allowable power dissipation VDDMAX PD Operating temperature range TA Storage temperature range TS Max. output current IOMAX.
  • 1: On 50mm.

📥 Download Datasheet

Datasheet Details

Part number PT3639
Manufacturer Prolific
File Size 1.21 MB
Description Hi-sensitivity Unipolar Hall Switch
Datasheet download datasheet PT3639 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PT360 COMPACT TYPE PHOTOTRANSISTOR Sharp
PT3601 HALL SWITCH SENSORS ETC
PT361 COMPACT TYPE INTERMEDIATE ACCEPTANCE PHOTOTRANSISTOR Sharp Electrionic
PT361F COMPACT TYPE INTERMEDIATE ACCEPTANCE PHOTOTRANSISTOR Sharp Electrionic
PT3-25E2-xxx Thermistor ETC

Other Datasheets by Prolific

Part Number Description
PT3631 Medium-sensitivity Unipolar Hall Switch
PT3636 Hi-sensitivity Unipolar Hall Switch
PT3601A General purpose Hall-effect Latch
PT3602 General purpose Hall-effect Latch
PT3602A General purpose Hall-effect Latch

Full PDF Text Transcription

Click to expand full text

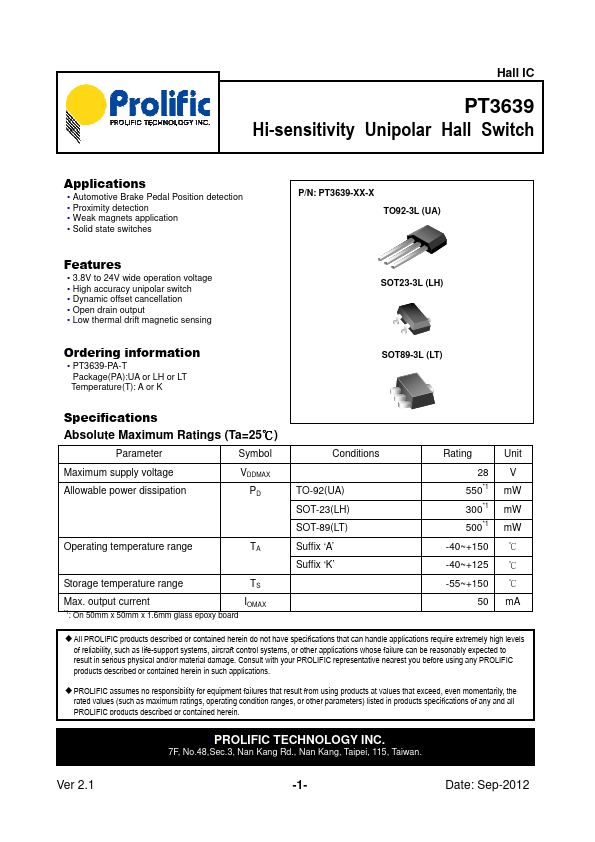

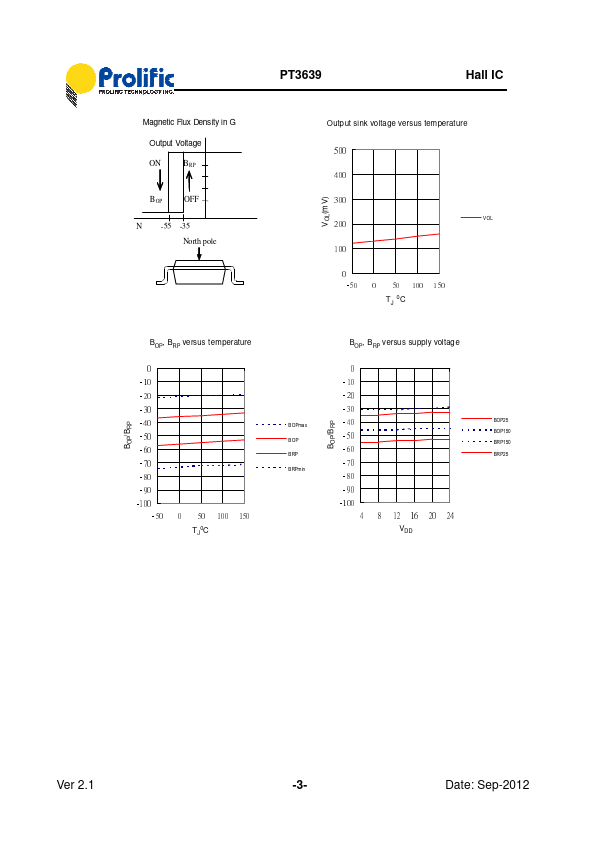

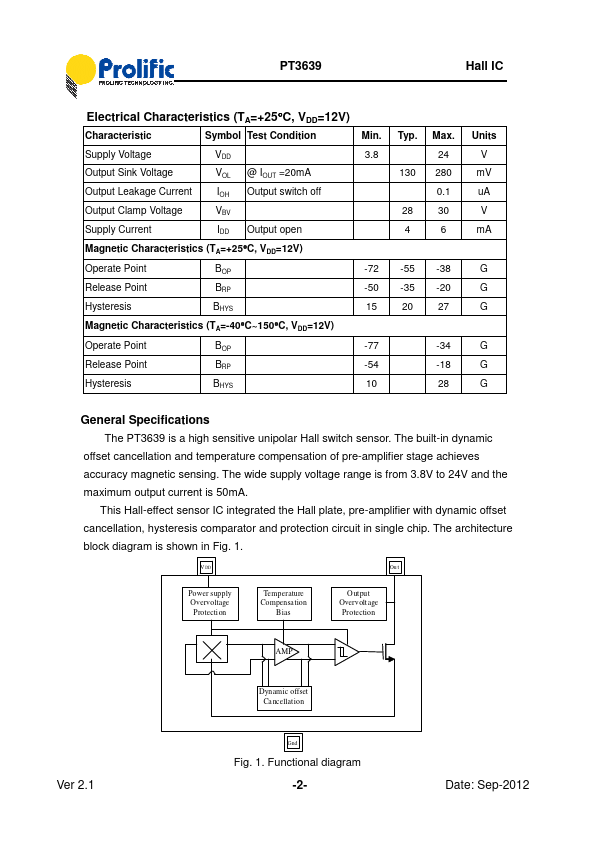

Hall IC PT3639 Hi-sensitivity Unipolar Hall Switch Applications Automotive Brake Pedal Position detection Proximity detection Weak magnets application Solid state switches P/N: PT3639-XX-X TO92-3L (UA) Features 3.8V to 24V wide operation voltage High accuracy unipolar switch Dynamic offset cancellation Open drain output Low thermal drift magnetic sensing SOT23-3L (LH) Ordering information PT3639-PA-T Package(PA):UA or LH or LT Temperature(T): A or K SOT89-3L (LT) Specifications Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Maximum supply voltage Allowable power dissipation VDDMAX PD Operating temperature range TA Storage temperature range TS Max. output current IOMAX *1: On 50mm x 50mm x 1.
