SMDJ14C - Surface Mount-3000W Transient Voltage Suppression Diodes

Download the SMDJ14C datasheet PDF (SMDJ5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount-3000w transient voltage suppression diodes.

Description

The SMDJ Series are designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

For surface mounted application to optimize board space Low profile

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMDJ5.0-Prisemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMDJ14C
Manufacturer Prisemi
File Size 399.89 KB
Description Surface Mount-3000W Transient Voltage Suppression Diodes
Datasheet download datasheet SMDJ14C Datasheet

📁 Similar Datasheet

  • SMDJ14C - Glass Passivated TVS (JFDsemi)
  • SMDJ14C - Transient Voltage Suppressors (MERITEK)
  • SMDJ14C - 3000 Watt Surface Mount TVS (GW)
  • SMDJ14C - Surface Mount Transient Voltage Suppressors (SOCAY)
  • SMDJ14C - Surface Mount TVS (Topdiode)
  • SMDJ14C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE (Sunmate)
  • SMDJ14C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (PACELEADER)
  • SMDJ14C - Surface Mount Transient Voltage Suppressors (UN Semiconducctor)
  • SMDJ14CA - 3000W Transient Voltage Suppressor (Leiditech)
  • SMDJ14CA - Glass Passivated TVS (JFDsemi)
Other Datasheets by Prisemi
  • SMDJ14CA - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ14 - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ14A - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ10 - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ100 - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ100A - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ100C - Surface Mount-3000W Transient Voltage Suppression Diodes
  • SMDJ100CA - Surface Mount-3000W Transient Voltage Suppression Diodes

Full PDF Text Transcription

Click to expand full text

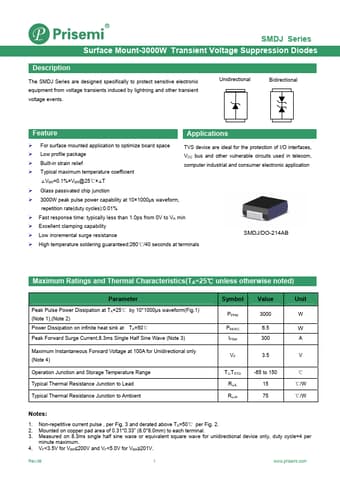

SMDJ Series Surface Mount-3000W Transient Voltage Suppression Diodes Description The SMDJ Series are designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Unidirectional Bidirectional Feature Applications  For surface mounted application to optimize board space  Low profile package  Built-in strain relief  Typical maximum temperature coefficient TVS device are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer industrial and consumer electronic application ᇞVBR=0.1%×VBR@25℃×ᇞT  Glass passivated chip junction  3000W peak pulse power capability at 10×1000μs waveform, repetition rate(duty cycles):0.
