PSM6N03R7 - N-Channel MOSFET

Prisemi

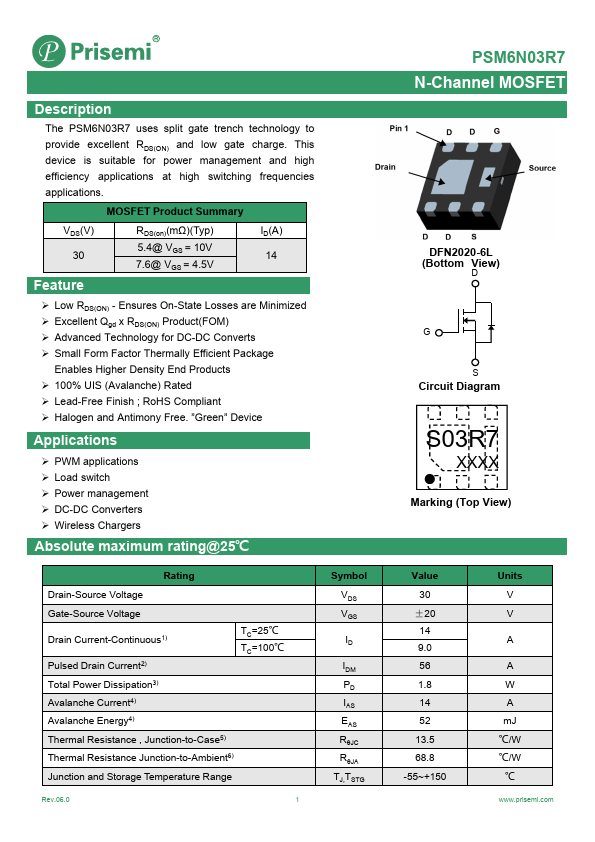

The PSM6N03R7 by Prisemi is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

PSM6N03R7 N-Channel MOSFET by Prisemi - Datasheet Preview — Official preview page of the **PSM6N03R7** N-Channel MOSFET datasheet (Prisemi).

Datasheet Details

Part number	PSM6N03R7
Manufacturer	Prisemi
File Size	445.26 KB
Description	N-Channel MOSFET
Datasheet	PSM6N03R7-Prisemi.pdf

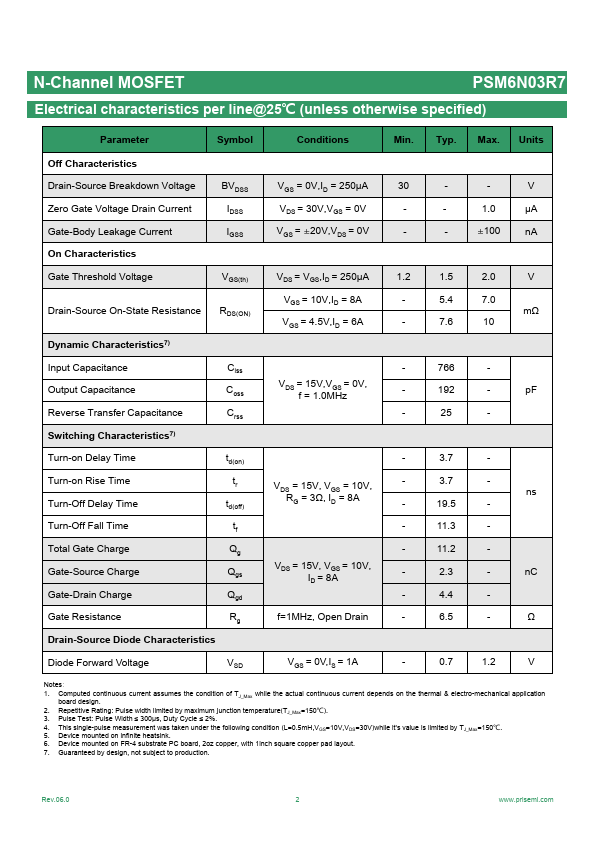

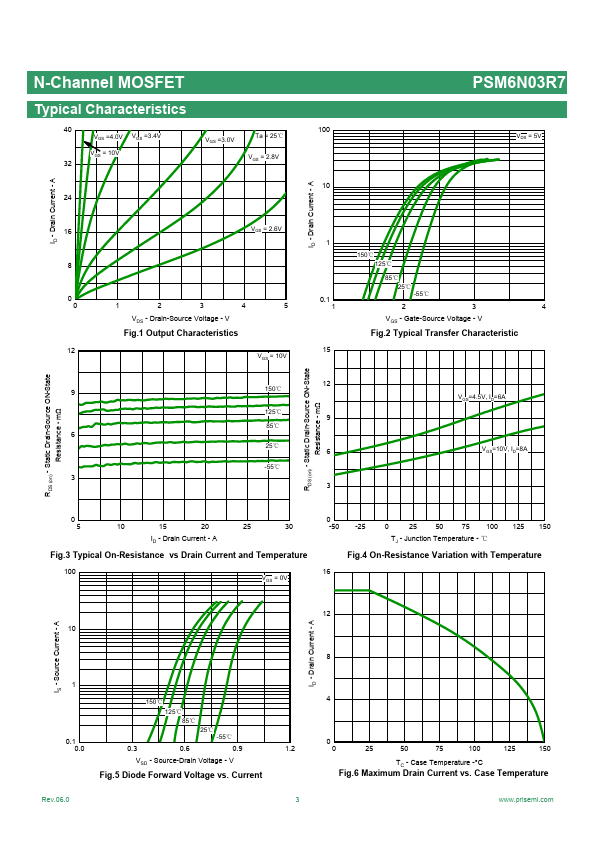

Additional preview pages of the PSM6N03R7 datasheet.

PSM6N03R7 Product details

Description

The PSM6N03R7 uses split gate trench technology to provide excellent RDS(ON) and low gate charge. Low RDS(ON) - Ensures On-State Losses are Minimized Excellent Qgd x RDS(ON) Product(FOM) Advanced Technology for DC-DC Converts Small Form Factor Thermal
