Datasheet Details
| Part number | PSICM4TAT120R16 |
|---|---|
| Manufacturer | Prisemi |
| File Size | 2.88 MB |
| Description | SiC MOSFET |
| Datasheet |
 PSICM4TAT120R16-Prisemi.pdf
|
| Part number | PSICM4TAT120R16 |
|---|---|
| Manufacturer | Prisemi |
| File Size | 2.88 MB |
| Description | SiC MOSFET |
| Datasheet |
PSICM4TAT120R16-Prisemi.pdf
|

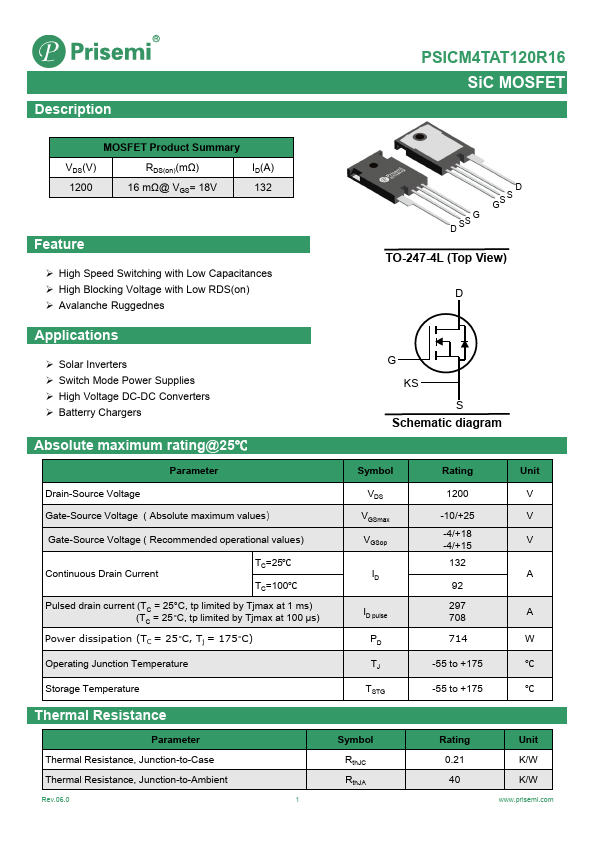

PSICM4TAT120R16 SiC MOSFET MOSFET Product Summary VDS(V) 1200 RDS(on)(mΩ) 16 mΩ@ VGS= 18V ID(A) 132 Feature High Speed Switching with Low Capacitances High Blocking Voltage with Low RDS(on) Avalanche Ruggednes D SS G D GS S TO-247-4L (Top View) D Applications Solar Inverters Switch Mode Power Supplies High Voltage DC-DC Converters Batterry Chargers Absolute maximum rating@25℃ Parameter Drain-Source Voltage Gate-Source Voltage ( Absolute max
