PSBD3D40V1H - Schottky Barrier Diode

PSBD3D40V1H Description

.

PSBD3D40V1H Applications

* Low current rectification Construction
* Silicon epitaxial planar Mechanical Characteristics
* Lead finish:100% matte Sn(Tin)
* Mounting position: Any
* Qualified max reflow temperature:260℃
* Pure tin plating: 7 ~ 17 um
* Pin flatness:≤3mil Electrical characteristics

📥 Download Datasheet

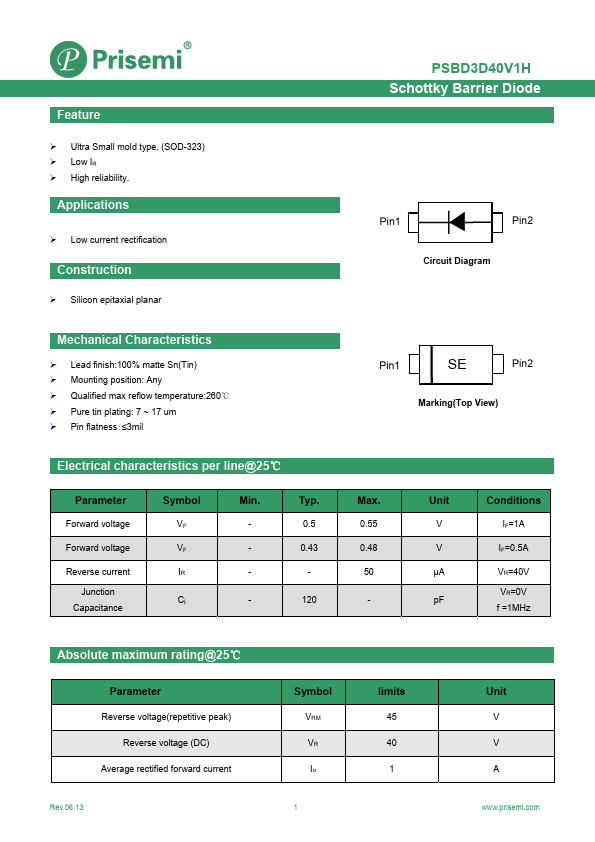

Preview of PSBD3D40V1H PDF

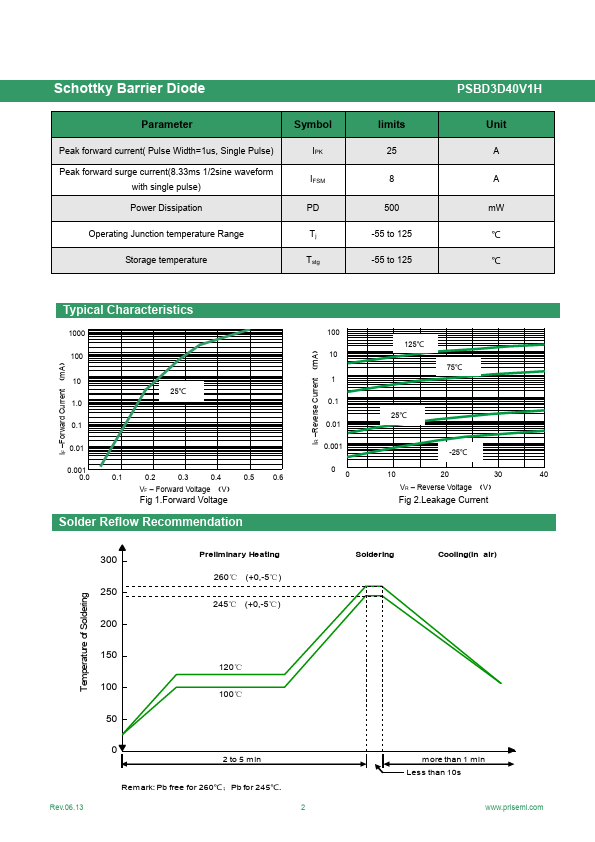

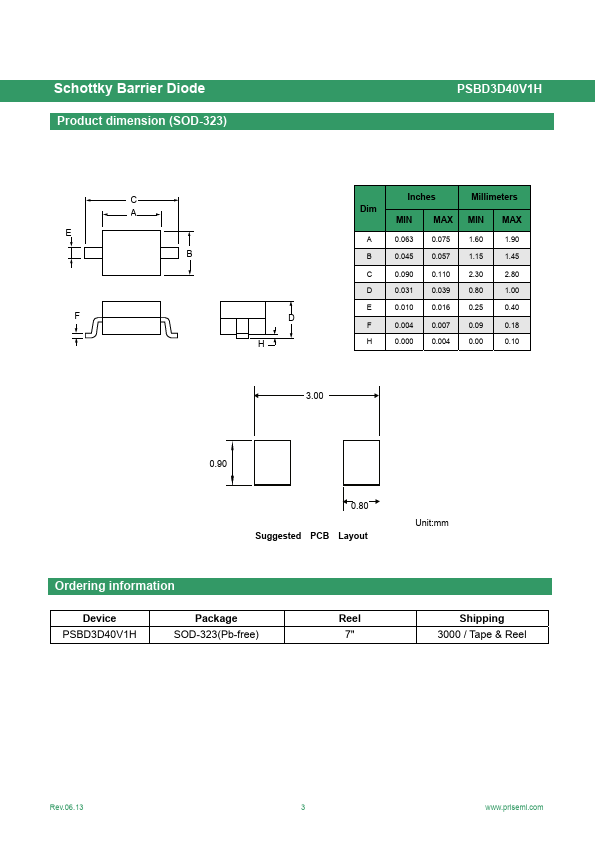

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PSBD3D40V1H
Manufacturer
Prisemi
File Size
232.66 KB
Datasheet
PSBD3D40V1H-Prisemi.pdf
Description
Schottky Barrier Diode
