Datasheet Details
| Part number | PNMT100V2 |
|---|---|
| Manufacturer | Prisemi |
| File Size | 1.04 MB |
| Description | N-Channel MOSFET |
| Datasheet |
 PNMT100V2-Prisemi.pdf
|
| Part number | PNMT100V2 |
|---|---|
| Manufacturer | Prisemi |
| File Size | 1.04 MB |
| Description | N-Channel MOSFET |
| Datasheet |
PNMT100V2-Prisemi.pdf
|

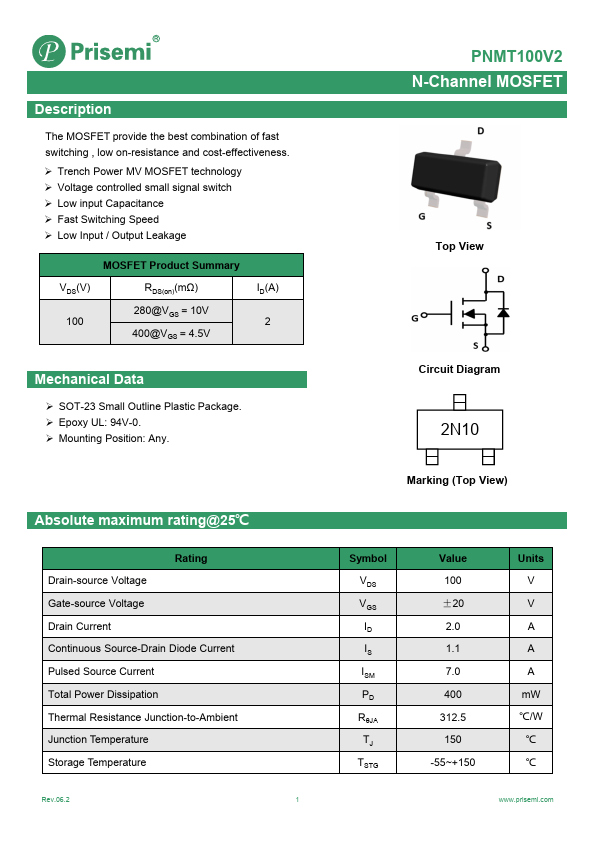

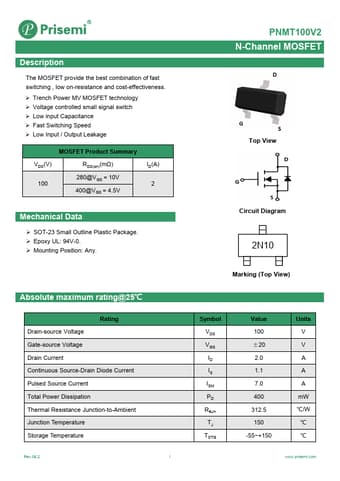

The MOSFET provide the best combination of fast switching , low on-resistance and cost-effectiveness. Trench Power MV MOSFET technology Voltage controlled small signal switch Low input Capacitance Fast Switching Speed Low Input / Output Leakage MOSFET Product Summary VDS(V) 100 RDS(on)(mΩ) 280@VGS = 10V 400@VGS = 4.5V ID(A) 2 Mechanical Data SOT-23 Small Outline Plastic Package. Epoxy UL: 94V-0. Mounting Position: Any.
