PT2272 - Remote Control Decoder

Princeton Technology

📥 Download Datasheet

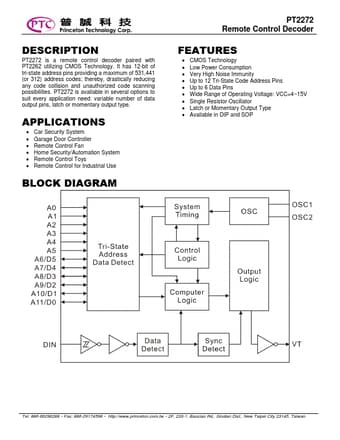

PT2272 Datasheet Preview — Preview of PT2272 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PT2272
Manufacturer	Princeton Technology
File Size	1.35 MB
Description	Remote Control Decoder
Datasheet	PT2272-PrincetonTechnology.pdf

PT2272 Product details

Description

PT2272 is a remote control decoder paired with PT2262 utilizing CMOS Technology. Car Security System Garage Door Controller Remote Control

Features

CMOS Technology.
Low Power Consumption.
Very High Noise Immunity.
Up to 12 Tri-State Code Address Pins.
Up to 6 Data Pins.
Wide Range of Operating Voltage: VCC=4~15V.
Single Resistor Oscillator.
Latch or Momentary Output Type.
Available in DIP and SOP Tel: 886-66296288‧Fax: 886-29174598‧ http://www. princ.
