PT2258 - 6-Channel Electronic Volume Controller

Description

PT2258 is a 6-Channel Electronic Volume Controller IC utilizing CMOS Technology specially designed for the new generation of AV Multi-Channel Audio System.

PT2258 provides an I2C Control Interface, an attenuation range of 0 to -79dB at 1dB/step, low noise, and high channel separation.

Features

  • CMOS Technology.
  • Low Power Consumption.
  • Least External Components.
  • Attenuation Range: 0 to -79dB at 1dB/step.
  • Operating Voltage: 5 to 9 V.
  • Low Noise, S/N Ratio>100dB (A-weighting).
  • High Channel Separation.
  • I2C Bus Control Interface.
  • Selectable Address.
  • 6-Channel Outputs.
  • Available in 20 pins, DIP or SOP Tel: 886-66.

📥 Download Datasheet

Datasheet Details

Part number PT2258
Manufacturer Princeton Technology Corp
File Size 736.73 KB
Description 6-Channel Electronic Volume Controller
Datasheet download datasheet PT2258 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PT22501 Surface Mount Inductors DATATRONIC
PT22502 Surface Mount Inductors DATATRONIC
PT22503 Surface Mount Inductors DATATRONIC
PT22504 Surface Mount Inductors DATATRONIC
PT22505 Surface Mount Inductors DATATRONIC

Other Datasheets by Princeton Technology Corp

Part Number Description
PT2250A Infrared Remote Control Receiver
PT2253B Electronic Volume Controller IC
PT2254A Electronic Volume Controller IC
PT2255A Electronic Volume Controller
PT2256 Electronic Volume Controller

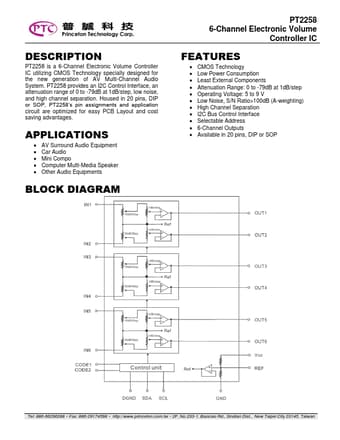

Full PDF Text Transcription

Click to expand full text
DESCRIPTION PT2258 is a 6-Channel Electronic Volume Controller IC utilizing CMOS Technology specially designed for the new generation of AV Multi-Channel Audio System. PT2258 provides an I2C Control Interface, an attenuation range of 0 to -79dB at 1dB/step, low noise, and high channel separation. Housed in 20 pins, DIP or SOP, PT2258’s pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
