HC110-13H1, HC140-02V1 - Common mode chokes

HC110-13H1 Description

Common Mode Chokes HC SERIES Common mode chokes with Nanocrystalline cores .

HC110-13H1 Features

* -Nominal current in each winding (I): from 2A to 30A. -Nominal inductance (L): from 6mH to 28mH. -Rated voltage: 250Vac. -Test voltage: 1.5kVac, winding to winding. -Creepage distance: 3mm, winding to winding. -Ambient temperature: from
* 40ºC to +50ºC. -Storage temperature: from
* 40º

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HC110-13H1, HC140-02V1. Please refer to the document for exact specifications by model.

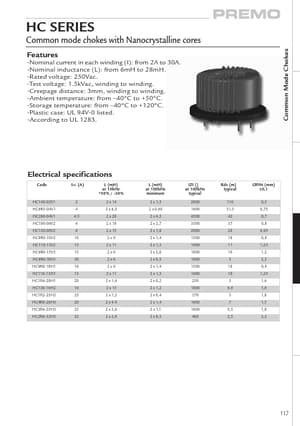

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HC110-13H1, HC140-02V1
Manufacturer
Premo
File Size
1.94 MB
Datasheet
HC140-02V1-Premo.pdf
Description
Common mode chokes
Note
This datasheet PDF includes multiple part numbers: HC110-13H1, HC140-02V1.
Please refer to the document for exact specifications by model.
