TSD-515, TSD-1251 2.25 Watt SIP DC/DC Converters

TSD-515 Description

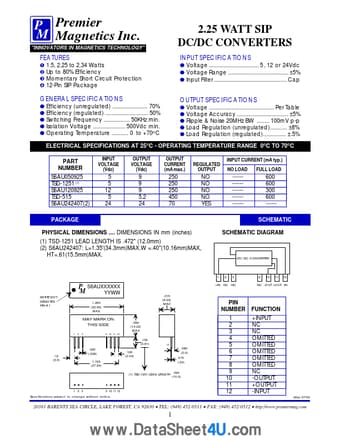

P Premier M Magnetics Inc."INNOVATORS IN MAGNETICS TECHNOLOGY" 2.25 WATT SIP DC/DC CONVERTERS INPUT SPECIFICATIONS % Voltage 5 , 12 or 24Vdc % Volt.

TSD-515 Features

* ! " # $ 1.5, 2.25 to 2.34 Watts Up to 80% Efficiency Momentary Short Circuit Protection 12-Pin SIP Package GENERAL SPECIFICATIONS % % % % % Efficiency (unregulated) 70% Efficiency (regulated) 50% Switching Frequency 50KHz min. Isolation Voltage 500Vdc min. Operating Temperature 0 to +70OC OUT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSD-515, TSD-1251. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
TSD-515, TSD-1251
Manufacturer
Premier Magnetics
File Size
27.30 KB
Datasheet
TSD-1251_PremierMagnetics.pdf
Description
2.25 Watt SIP DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: TSD-515, TSD-1251.
Please refer to the document for exact specifications by model.
