M57962CL-01 - Gate Driver

Description

M57962CL-01 is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application.

This device operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler.

Features

  • Electrical Isolation between input and output with optocouplers. (Viso = 2500VRMS for 1 min. ) 25 MAX www. DataSheet4U. com 4.5±1.5 0.35±0.2 2.54 0.55 33.02 4.5 MAX 8.5 MAX.
  • Two supply drive topology.
  • Built in short circuit protection circuit with a pin for fault output.
  • Variable fall time on activity of short circuit protection 1 12.5 MAX 14 6.5 MAX Test Circuit R 4.7 k⍀ VIN 8 1 2 5 Ctrip DZ1 30V RG 4 VOUT tr tf 90% 50% 10% tPLH tPHL D1.
  • TTL.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M57962CL-01 M57962CL-01 ETC
M57962AL LGBT-IC ETC
M57962AL-01 LGBT-IC ETC
M57962K Hybrid-IC Powerex Power Semiconductors
M57962L Hybrid-IC Mitsubishi

Other Datasheets by Powerex, Inc

Part Number Description
M57903L Hybrid-IC
M57904L Hybrid-IC

Full PDF Text Transcription

Click to expand full text

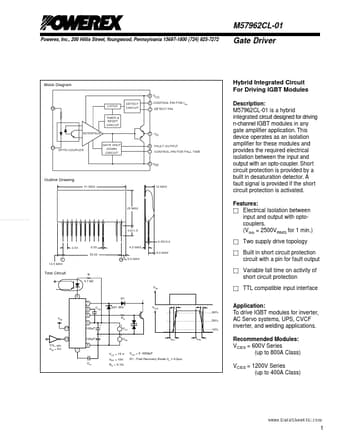

M57962CL-01 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Gate Driver Block Diagram 4 VCC LATCH DETECT CIRCUIT Hybrid Integrated Circuit For Driving IGBT Modules 2 CONTROL PIN FOR ttrip 1 DETECT PIN 14 TIMER & RESET CIRCUIT INTERFACE 5 V O GATE SHUT DOWN CIRCUIT 13 8 7 FAULT OUTPUT CONTROL PIN FOR FALL TIME OPTO-COUPLER 6 VEE Outline Drawing 51 MAX 12 MAX Description: M57962CL-01 is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This device operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler. Short circuit protection is provided by a built in desaturation detector.
