ME701603 - Three-Phase Diode Bridge Modules (30 Amperes/1200-1600 Volts)

Product Overview

Powerex Powers

📥 Download Datasheet

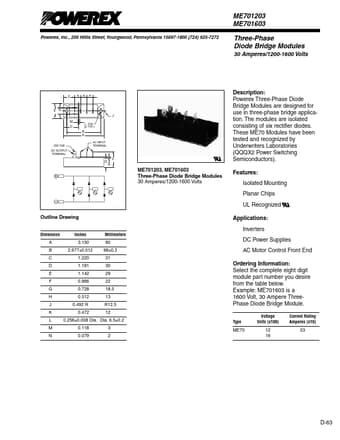

ME701603 Three-Phase Diode Bridge Modules (30 Amperes/1200-1600 Volts) by Powerex Powers - Datasheet Preview — Datasheet preview – ME701603

Datasheet Details

Part number	ME701603
Manufacturer	Powerex Powers
File Size	76.11 KB
Description	Three-Phase Diode Bridge Modules (30 Amperes/1200-1600 Volts)
Datasheet	ME701603 Datasheet
Additional preview pages of the ME701603 datasheet.

Product details

Description

Powerex Three-Phase Diode Bridge Modules are designed for use in three-phase bridge application.

Features

M Isolated Mounting M Planar Chips M UL Recognized Outline Drawing Dimension A B C D E F G H J K L M N Inches 3.150 2.677±0.012 1.220 1.181 1.142 0.866 0.728 0.512 0.492 R 0.472 0.118 0.079 Millimeters 80 68±0.3 31 30 29 22 18.5 13 R12.5 12.
