PD412011 - POW-R-BLOK Dual Diode Isolated Module (1100 Amperes / Up to 2400 Volts)

Powerex Power Semiconductors

The PD412011 by Powerex Power Semiconductors is a POW-R-BLOK Dual Diode Isolated Module (1100 Amperes / Up to 2400 Volts). Below is the official datasheet preview.

📥 Download Datasheet

PD412011 POW-R-BLOK Dual Diode Isolated Module (1100 Amperes / Up to 2400 Volts) by Powerex Power Semiconductors - Datasheet Preview — Official preview page of the **PD412011** POW-R-BLOK Dual Diode Isolated Module (1100 Amperes / Up to 2400 Volts) datasheet (Powerex Power Semiconductors).

Datasheet Details

Part number	PD412011
Manufacturer	Powerex Power Semiconductors
File Size	316.77 KB
Description	POW-R-BLOK Dual Diode Isolated Module (1100 Amperes / Up to 2400 Volts)
Datasheet	PD412011_PowerexPowerSemiconductors.pdf

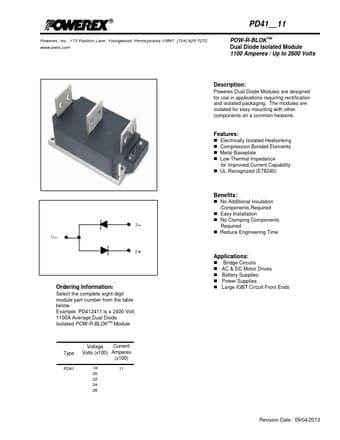

Additional preview pages of the PD412011 datasheet.

PD412011 Product details

Description

Powerex Dual Diode Modules are designed for use in applications requiring rectification and isolated packaging.

Features

T T T T Electrically Isolated Heatsinking Compression Bonded Elements Metal Baseplate Low Thermal Impedance for Improved Current Capability Benefits: T No Additional Insulation Components Required T Easy Installation T No Clamping Components Required T Reduce Engineering Time.
