M57962K - Hybrid-IC

Description

M57962K is a hybrid integrated circuit designed to provide optimum gate drive for IGBT modules.

This device provides high current optically isolated gate drive with a large output voltage swing.

The driver also provides short circuit protection based on desaturation detection.

Features

  • £ Electrical Isolation between input and output with opto-couplers. (Viso = 3750VRMS for 1 min. ) £ Two supply drive topology 5 V O GATE.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M57962AL LGBT-IC ETC
M57962AL-01 LGBT-IC ETC
M57962CL-01 M57962CL-01 ETC
M57962CL-01 Gate Driver Powerex
M57962L Hybrid-IC Mitsubishi

Other Datasheets by Powerex, Inc

Part Number Description
M57184N-715B High Voltage Input DC-to-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

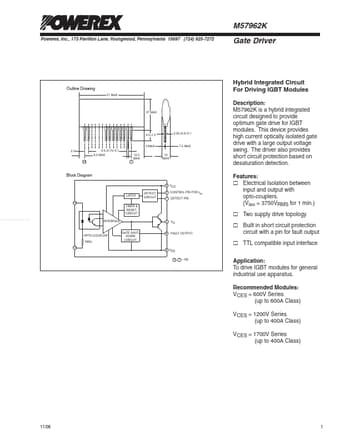

M57962K Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 Gate Driver Outline Drawing 51 MAX Hybrid Integrated Circuit For Driving IGBT Modules Description: M57962K is a hybrid integrated circuit designed to provide optimum gate drive for IGBT modules. This device provides high current optically isolated gate drive with a large output voltage swing. The driver also provides short circuit protection based on desaturation detection. Features: £ Electrical Isolation between input and output with opto-couplers. (Viso = 3750VRMS for 1 min.) £ Two supply drive topology 5 V O GATE SHUTDOWN CIRCUIT 27 MAX 4.5p1.5 3 MAX 2.54 0.5+0.15/-0.1 6.5 MAX 12.5 MAX 10 MAX 0.25+0.2/-0.1 7.
