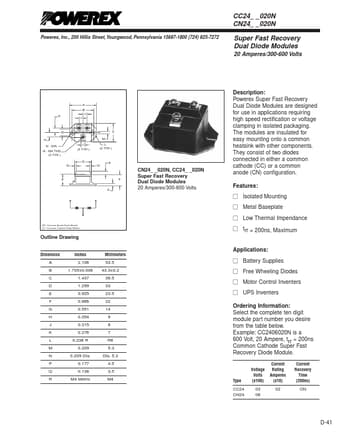

Description
Powerex Super Fast Recovery Dual Diode Modules are designed for use in applications requiring high speed rectification or voltage clamping in isolated packaging.
Features
- Ⅺ Isolated Mounting Ⅺ Metal Baseplate Ⅺ Low Thermal Impendance
CN.
- Common Anode Diode Module CC.
- Common Cathode Diode Module
Ⅺ trr = 200ns, Maximum
Outline Drawing
Dimension A B C D E F G H J K L M N P Q R
Inches 2.106 1.705±0.008 1.437 1.299 0.925 0.866 0.551 0.354 0.315 0.276 0.236 R 0.209 0.209 Dia. 0.177 0.138 M4 Metric
Millimeters 53.5 43.3±0.2 36.5 33 23.5 22 14 9 8 7 R6 5.3 Dia. 5.3 4.5 3.5 M4.
