PT6602 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR

Download the PT6602 datasheet PDF. This datasheet also covers the PT6600 variant, as both devices belong to the same 9amp adjustable integrated switching regulator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PT6600-PowerTrends.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PT6602
Manufacturer Power Trends
File Size 225.16 KB
Description 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR
Datasheet download datasheet PT6602 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PT66002 T1 Transformer Bourns Electronic Solutions
PT66003 T1/CEPT Transformer Bourns Electronic Solutions
PT66004 ISDN S-Interface Transformer Bourns Electronic Solutions
PT6601 LCD Driver IC Princeton Technology Corp
PT6605 3 to 5 series lithium-ion/lithium-polymer battery secondary protection Powtech

Other Datasheets by Power Trends

Part Number Description
PT6600 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR
PT6601 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR
PT6603 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR
PT6604 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR
PT6605 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

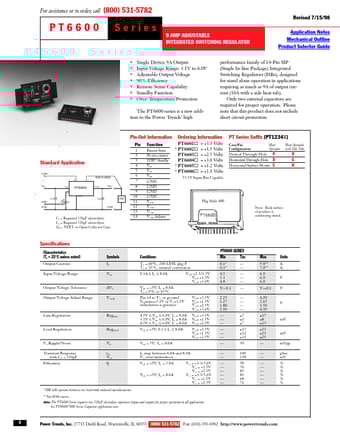

For assistance or to order, call (800) 531-5782 PT6600 Series 9 AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR Revised 7/15/98 Application Notes Mechanical Outline Product Selector Guide • Single Device 9A Output • Input Voltage Range: 3.1V to 6.0V • Adjustable Output Voltage • 90% Efficiency • Remote Sense Capability • Standby Function • Over-Temperature Protection The PT6600 series is a new addition to the Power Trends’ high performance family of 14-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs), designed for stand alone operation in applications requiring as much as 9A of output current (10A with a side heat tab). Only two external capacitors are required for proper operation. Please note that this product does not include short circuit protection.
