NVD0.5ZHH-M6 - NV Series: 4 - 6W DC/DC Converters 9-36V / 18-36V / 36-72V & 16-75V Inputs 3.3V / 5.0V / 12V / 15V / 5.0V / 12V / 15V & 24V Outputs

Product Overview

Power-One

Datasheet Details

Part number	NVD0.5ZHH-M6
Manufacturer	Power-One
File Size	Direct Link
Description	NV Series: 4 - 6W DC/DC Converters 9-36V / 18-36V / 36-72V & 16-75V Inputs 3.3V / 5.0V / 12V / 15V / 5.0V / 12V / 15V & 24V Outputs
Datasheet	NVD0.5ZHH-M6 Datasheet
Note	This datasheet PDF includes multiple part numbers: NVD0.5ZHH-M6, NVS. Please refer to the document for exact specifications by model.

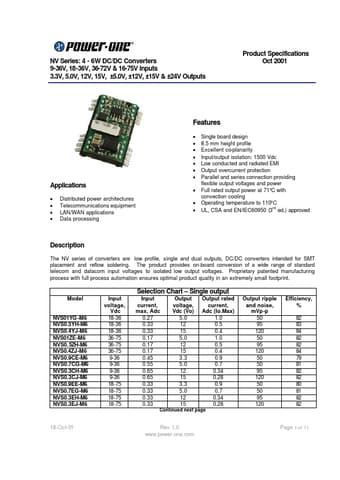

Additional preview pages of the NVD0.5ZHH-M6 datasheet.

Product details

Description

The NV series of converters are low profile, single and dual outputs, DC/DC converters intended for SMT placement and reflow soldering. Single output Model Input voltage, Vdc 18-36 18-36 18-36 36-75

Features

Single board design 8.5 mm height profile Excellent co-planarity Input/output isolation: 1500 Vdc Low conducted and radiated EMI Output overcurrent protection Parallel and series connection providing flexible output voltages and power Full rated output power at 71ºC with convection cooling Operating temperature to 110ºC rd UL, CSA and EN/IEC60950 (3 ed. ) approved.
