DK1501-7R - 150 Watt DC-DC Converters

Download the DK1501-7R datasheet PDF (DK1501-7R_Power included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 150 watt dc-dc converters.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DK1501-7R_Power-One.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DK1501-7R
Manufacturer Power-One
File Size 173.58 KB
Description 150 Watt DC-DC Converters
Datasheet download datasheet DK1501-7R Datasheet

📁 Similar Datasheet

  • DK151F - NPN Transistor (INCHANGE)
  • DK151G - NPN Transistor (INCHANGE)
  • DK100-B020 - DC Current transducer (LEM)
  • DK100-B10 - DC Current transducer (LEM)
  • DK100-B420 - DC Current transducer (LEM)
  • DK100-B5 - DC Current transducer (LEM)
  • DK1000R - 315MHZ REMOTE KEYLESS ENTRY RECEIVER (RF Micro Devices)
  • DK106 - HIGH PERFORMANCE SWITCH MODE POWER CONTROLLER (DongKe Semicondutor)
  • DK112 - High-performance switching power supply controller (DK)
  • DK1203 - AC-DC Switch Mode Power controller (DongKe Semicondutor)
Other Datasheets by Power-One

Full PDF Text Transcription

Click to expand full text

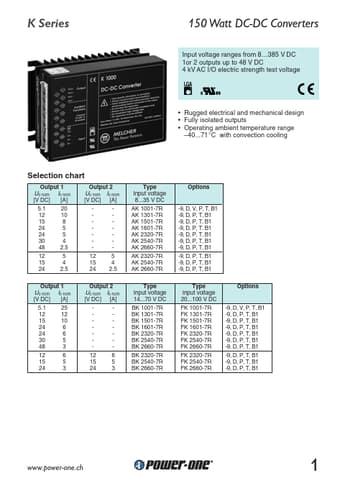

K Series 150 Watt DC-DC Converters Input voltage ranges from 8…385 V DC 1or 2 outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA • Rugged electrical and mechanical design • Fully isolated outputs • Operating ambient temperature range –40...71 °C with convection cooling Selection chart Output 1 Uo nom Io nom [V DC] [A] 5.1 20 12 10 15 8 24 5 24 5 30 4 48 2.5 12 5 15 4 24 2.5 Output 1 Uo nom Io nom [V DC] [A] 5.1 25 12 12 15 10 24 6 24 6 30 5 48 3 12 6 15 5 24 3 Output 2 Uo nom Io nom [V DC] [A] 12 5 15 4 24 2.5 Output 2 Uo nom Io nom [V DC] [A] 12 6 15 5 24 3 Type Input voltage 8...35 V DC AK 1001-7R AK 1301-7R AK 1501-7R AK 1601-7R AK 2320-7R AK 2540-7R AK 2660-7R AK 2320-7R AK 2540-7R AK 2660-7R Type Input voltage 14...
