DGP30E48S5 - SINGLE OUTPUT

Product Overview

Power-One

📥 Download Datasheet

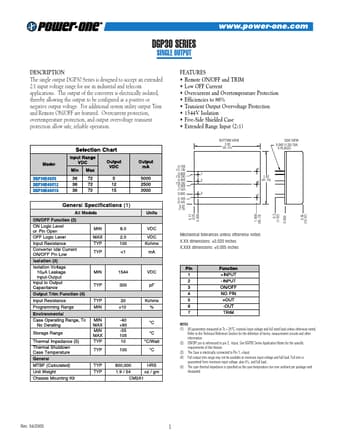

DGP30E48S5 SINGLE OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DGP30E48S5

Datasheet Details

Part number	DGP30E48S5
Manufacturer	Power-One
File Size	888.44 KB
Description	SINGLE OUTPUT
Datasheet	DGP30E48S5 Datasheet
Note	This datasheet PDF includes multiple part numbers: DGP30E48S5, DGP. Please refer to the document for exact specifications by model.
Additional preview pages of the DGP30E48S5 datasheet.

Product details

Description

The single output DGP30 Series is designed to accept an extended 2:1 input voltage range for use in industrial and telecom applications.

Features

Remote ON/OFF and TRIM.
Low OFF Current.
Overcurrent and Overtemperature Protection.
Efficiencies to 86%.
Transient Output Overvoltage Protection.
1544V Isolation.
Five-Side Shielded Case.
Extended Range Input (2:1) BOTTOM VIEW 2.02 (51.31) SIDE VIEW 0.040 (1.02) DIA 6 PLACES 0.700 (17.78) 0.600 (15.24) 0.400 (10.16) 0.300 (7.62) 0.000 0.100 (2.54) 0.31 (7.9) 0.11 (2.8) 0.000 5 1 2 6 1.62 (41.15) 3 7 0.3 (7.62) 1.800.
