DGP20E12T5 - TRIPLE OUTPUT

Product Overview

Power-One

📥 Download Datasheet

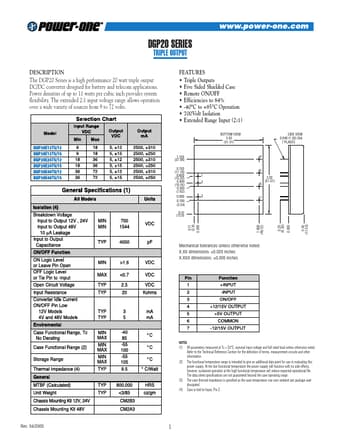

DGP20E12T5 TRIPLE OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DGP20E12T5

Datasheet Details

Part number	DGP20E12T5
Manufacturer	Power-One
File Size	901.08 KB
Description	TRIPLE OUTPUT
Datasheet	DGP20E12T5 Datasheet
Note	This datasheet PDF includes multiple part numbers: DGP20E12T5, DGP. Please refer to the document for exact specifications by model.
Additional preview pages of the DGP20E12T5 datasheet.

Product details

Description

The DGP20 Series is a high performance 20 watt triple output DC/DC converter designed for battery and telecom applications.

Features

Triple Outputs.
Five Sided Shielded Case.
Remote ON/OFF.
Efficiencies to 84%.
-40°C to +85°C Operation.
700Volt Isolation.
Extended Range Input (2:1) BOTTOM VIEW 2.02 (51.31) SIDE VIEW 0.040 (1.02) DIA 7 PLACES 1.100 (27.94) 0.700 (17.78) 0.600 (15.24) 0.400 (10.16) 0.300 (7.62) 0.000 0.100 (2.54) 0.51 (13.0) 4 5 1 2 6 2.02 (51.31) 3 7 0.25 (6.35) 0.11 (2.8) 0.000 1.800 (45.72) Mechanical tolerances unless otherwise noted:.
