DFC10E12S5 - SINGLE OUTPUT

Product Overview

Power-One

📥 Download Datasheet

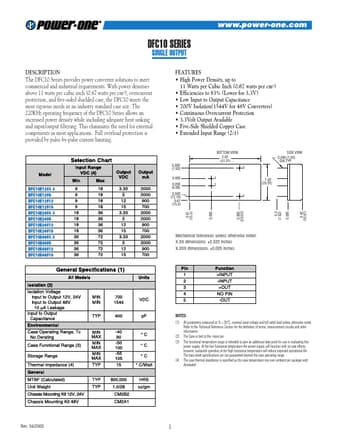

DFC10E12S5 SINGLE OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DFC10E12S5

Datasheet Details

Part number	DFC10E12S5
Manufacturer	Power-One
File Size	1.05 MB
Description	SINGLE OUTPUT
Datasheet	DFC10E12S5 Datasheet
Note	This datasheet PDF includes multiple part numbers: DFC10E12S5, DFC. Please refer to the document for exact specifications by model.
Additional preview pages of the DFC10E12S5 datasheet.

Product details

Description

The DFC10 Series provides power converter solutions to meet commercial and industrial requirements.

Features

High Power Density, up to 11 Watts per Cubic Inch (0.67 watts per cm3).
Efficiencies to 83% (Lower for 3.3V).
Low Input to Output Capacitance.
700V Isolation(1544V for 48V Converters).
Continuous Overcurrent Protection.
3.3Volt Output Available.
Five-Side Shielded Copper Case.
Extended Input Range (2:1) BOTTOM VIEW 2.02 (51.31) 0.300 (7.62) 0.000 0.200 (5.08) 0.500 (12.70) 0.61 (15.5) 0.61 (15.5) 0.000 1 2 5 3 SIDE VIEW 0.0.
