TNY255PN, TNY255GN Low Power Off-line Switcher

TNY255PN Description

TNY253/254/255 TinySwitch™ Family Energy Efficient, Low Power Off-line Switchers Product Highlights Lowest Cost, Low Power Switcher Solution .
The TinySwitch family uses a breakthrough design to provide the lowest cost, high efficiency, off-line switcher solution in the 0 to 10 W range.

TNY255PN Applications

* Very high loop bandwidth provides excellent transient response and fast turn on with practically no overshoot
* Current limit operation rejects line frequency ripple
* Glitch free output when input is removed
* Built-in current limit and thermal protection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TNY255PN, TNY255GN. Please refer to the document for exact specifications by model.

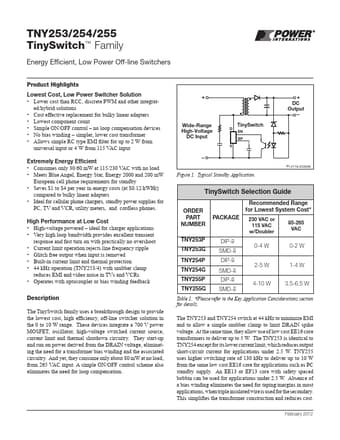

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TNY255PN, TNY255GN
Manufacturer
Power Integrations
File Size
1.45 MB
Datasheet
TNY255GN-PowerIntegrations.pdf
Description
Low Power Off-line Switcher
Note
This datasheet PDF includes multiple part numbers: TNY255PN, TNY255GN.
Please refer to the document for exact specifications by model.
