LYT6077C, LYT6063C Flyback CV/CC LED Driver

LYT6077C Description

LYTSwitch-6 Family Flyback CV/CC LED Driver IC with Integrated High-Voltage Switch and FluxLink Feedback Product Highlights Highly Integrated, Compa.
The LYTSwitch™-6 series family of ICs dramatically simplifies the development and manufacturing of off-line LED drivers, particularly those in compact.

LYT6077C Features

* Input line OV with auto-restart
* Output fault OVP/UVP with auto-restart
* Open SR FET gate detection
* Input voltage monitor with accurate brown-in
* Thermal foldback ensures that power continues to be delivered (lower level) at elevated temperatures Full S

LYT6077C Applications

* Isolated off-line LED driver
* Smart LED lighting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LYT6077C, LYT6063C. Please refer to the document for exact specifications by model.

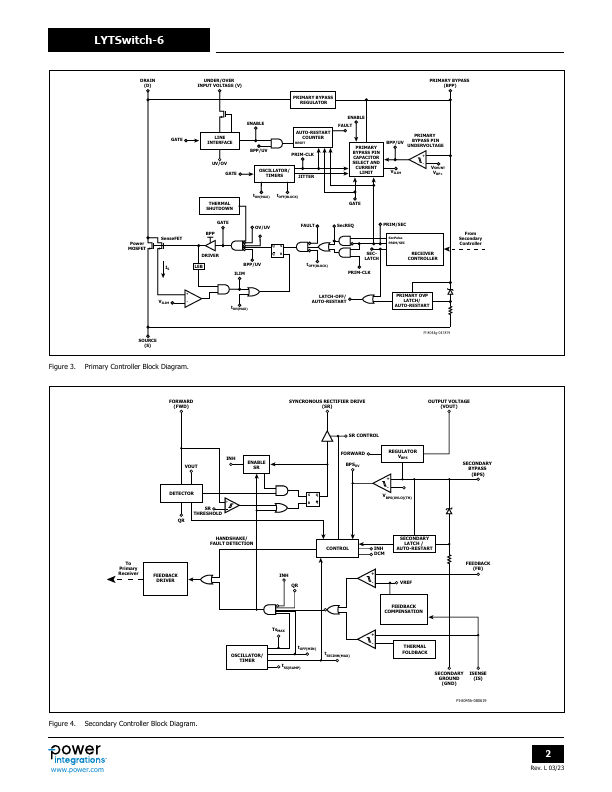

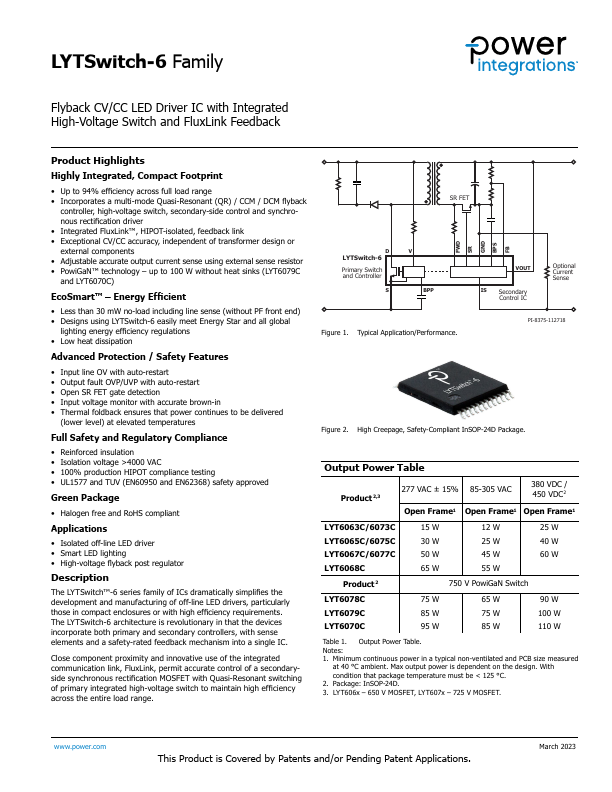

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LYT6077C, LYT6063C
Manufacturer
Power Integrations
File Size
2.78 MB
Datasheet
LYT6063C-PowerIntegrations.pdf
Description
Flyback CV/CC LED Driver
Note
This datasheet PDF includes multiple part numbers: LYT6077C, LYT6063C.
Please refer to the document for exact specifications by model.
