INN3470C, INN3464C - Off-Line Multiple Output QR Flyback Switcher

INN3470C Description

InnoSwitch3-MX Family Off-Line Multiple Output QR Flyback Switcher IC with Integrated 650 V, 725 V or 750 V Switch, Synchronous Rectification and Flu.
The InnoSwitch™3-MX together with InnoMux dramatically improves system efficiency by eliminating the boost and buck converter stages.

INN3470C Features

* Primary sensed output OVP
* Open SR FET gate detection
* Hysteretic thermal shutdown
* Input voltage monitor with accurate brown-in/brown-out and overvoltage protection Full Safety and Regulatory Compliance
* Reinforced insulation
* Isolation voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: INN3470C, INN3464C. Please refer to the document for exact specifications by model.

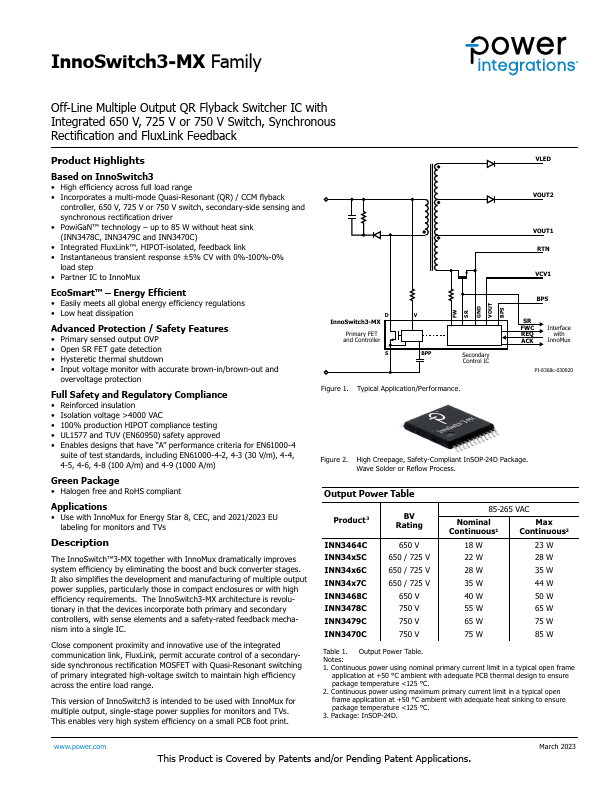

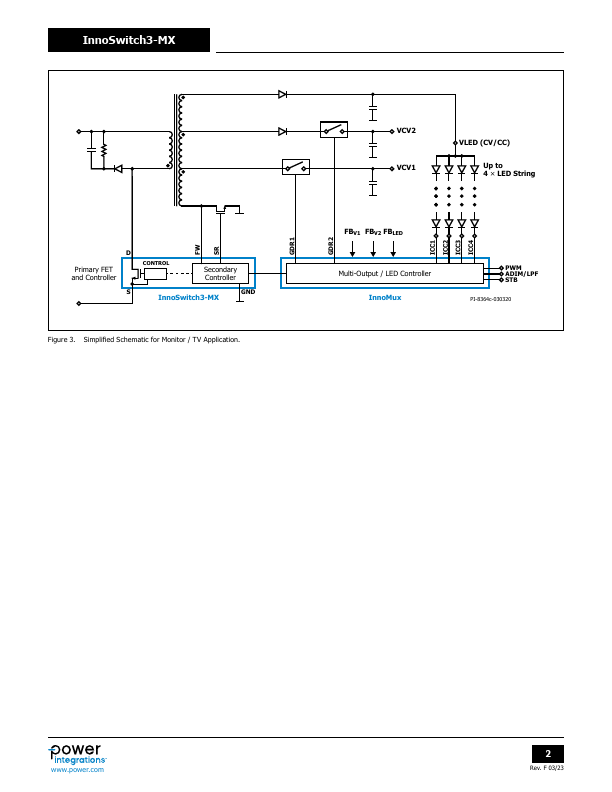

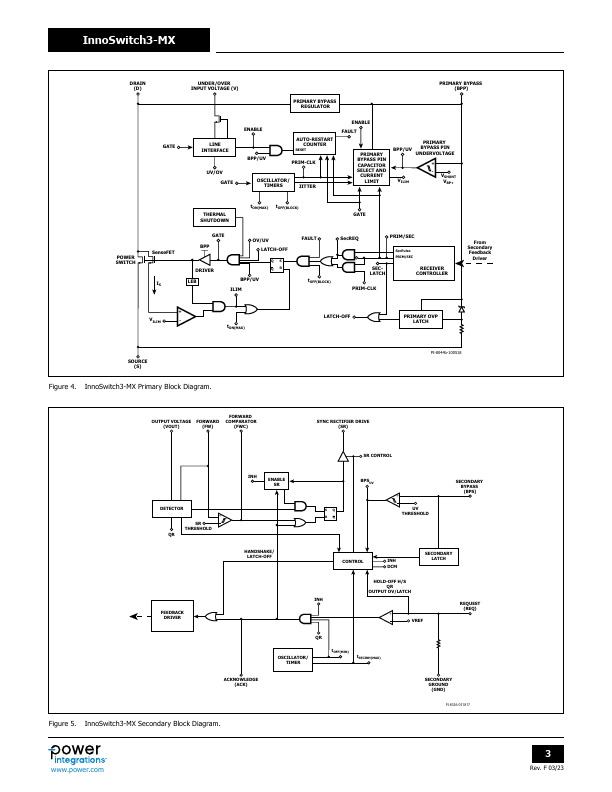

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
INN3470C, INN3464C
Manufacturer
Power Integrations
File Size
1.18 MB
Datasheet
INN3464C-PowerIntegrations.pdf
Description
Off-Line Multiple Output QR Flyback Switcher
Note
This datasheet PDF includes multiple part numbers: INN3470C, INN3464C.
Please refer to the document for exact specifications by model.
