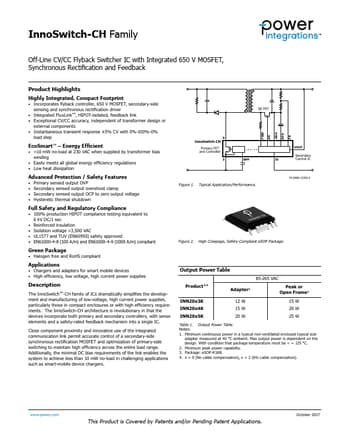

INN2003 Datasheet (Power Integrations) - Off-Line CV/CC Flyback Switcher IC

INN2003, Off-Line CV/CC Flyback Switcher IC

InnoSwitch-CH Family Off-Line CV/CC Flyback Switcher IC with Integrated 650 V MOSFET, Synchronous Rectification and Feedback Product Highlights Highly Integrated, Compact Footprint Incorporates flyback controller, 650 V MOSFET, secondary-side sensing and synchronous rectification driver Integrated FluxLink™, HIPOT-isolated, feedback link Exceptional CV/CC accuracy, independent of transformer design or external components Instantaneous transient res

INN2003 Features

* Primary sensed output OVP

* Secondary sensed output overshoot clamp

* Secondary sensed output OCP to zero output voltage

* Hysteretic thermal shutdown Full Safety and Regulatory Compliance

* 100% production HIPOT compliance test
