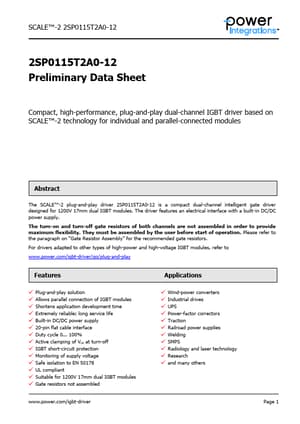

SCALE™-2 2SP0115T2A0-12
2SP0115T2A0-12 Preliminary Data Sheet
Compact, high-performance, plug-and-play dual-channel IGBT driver based on SCALE™-2 technology for individual and parallel-connected modules
Abstract
The SCALE™-2 plug-and-play driver 2SP0115T2A0-12 is a compact dual-channel intelligent gate driver designed for 1200V 17mm dual IGBT modules. The driver features an electrical interface with a built-in DC/DC power supply. The turn-on and turn-off gate resistors of both channels are not assembled in order to provide maximum flexibility. They must be assembled by the user before start of operation. Please refer to the paragraph on “Gate Resistor Assembly” for the recommended gate resistors. For drivers adapted to other types of high-power and high-voltage IGBT modules, refer to www.
