BD239E Datasheet (Power Innovations Limited) - NPN SILICON POWER TRANSISTORS

BD239E, NPN SILICON POWER TRANSISTORS

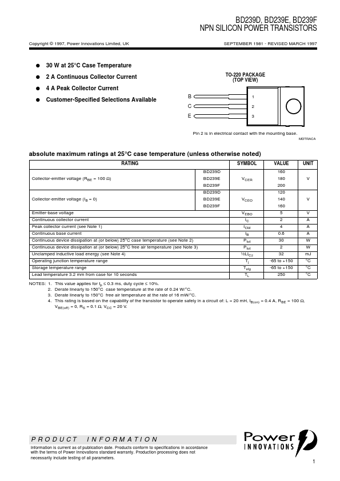

BD239D, BD239E, BD239F NPN SILICON POWER TRANSISTORS Copyright © 1997, Power Innovations Limited, UK SEPTEMBER 1981 - REVISED MARCH 1997 q q q q 30 W at 25°C Case Temperature 2 A Continuous Collector Current 4 A Peak Collector Current Customer-Specified Selections Available B C E 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base.

MDTRACA absolute maximum ratings at 25°C case temperature (unless otherwise noted) RATING BD239D Collector-emitter voltage (RBE
