PO54G373A - OCTAL TRANSPARENT D-TYPE LATCHES

General Description

Potato Semiconductor’s PO74G373A is designed for world top performance using submicron CMOS technology to achieve higher than 1.125GHz TTL /CMOS output frequency with less than 1.8ns propagation delay.

This dual Octal transparent D-type latches are designed for 1.65-V to 3.6-V VCC operation.

Key Features

  • . Patented technology . Operating frequency up to 1.125GHz with 2pf load . Operating frequency up to 700MHz with 5pf load . Operating frequency up to 350MHz with 15pf load . Operating frequency up to 100MHz with 50pf load . VCC Operates from 1.65V to 3.6V . Propagation delay < 1.8ns max with 15pf load . Low input capacitance: 4pf typical . Available in 20pin TSSOP package . Available in 20pin Ceramic Dual Flatpack . Available in 20pin Leadless Ceramic Chip Carrier.

📥 Download Datasheet

Datasheet Details

Part number PO54G373A
Manufacturer Potato Semiconductor Corporation
File Size 535.40 KB
Description OCTAL TRANSPARENT D-TYPE LATCHES
Datasheet download datasheet PO54G373A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PO54G00A GHz Logic Potatosemi
PO54G14A HEX SCHMITT-TRIGGER INVERTERS Potatosemi

Other Datasheets by Potato Semiconductor Corporation

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

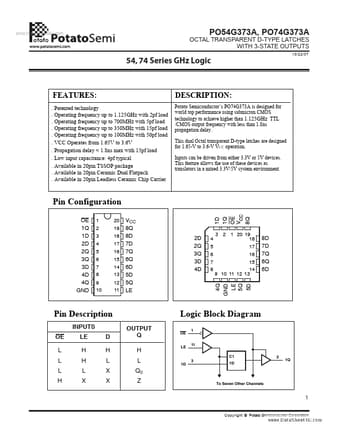

www.DataSheet4U.com OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS PO54G373A, PO74G373A 10/22/07 54, 74 Series GHz Logic FEATURES: . Patented technology . Operating frequency up to 1.125GHz with 2pf load . Operating frequency up to 700MHz with 5pf load . Operating frequency up to 350MHz with 15pf load . Operating frequency up to 100MHz with 50pf load . VCC Operates from 1.65V to 3.6V . Propagation delay < 1.8ns max with 15pf load . Low input capacitance: 4pf typical . Available in 20pin TSSOP package . Available in 20pin Ceramic Dual Flatpack . Available in 20pin Leadless Ceramic Chip Carrier DESCRIPTION: Potato Semiconductor’s PO74G373A is designed for world top performance using submicron CMOS technology to achieve higher than 1.
