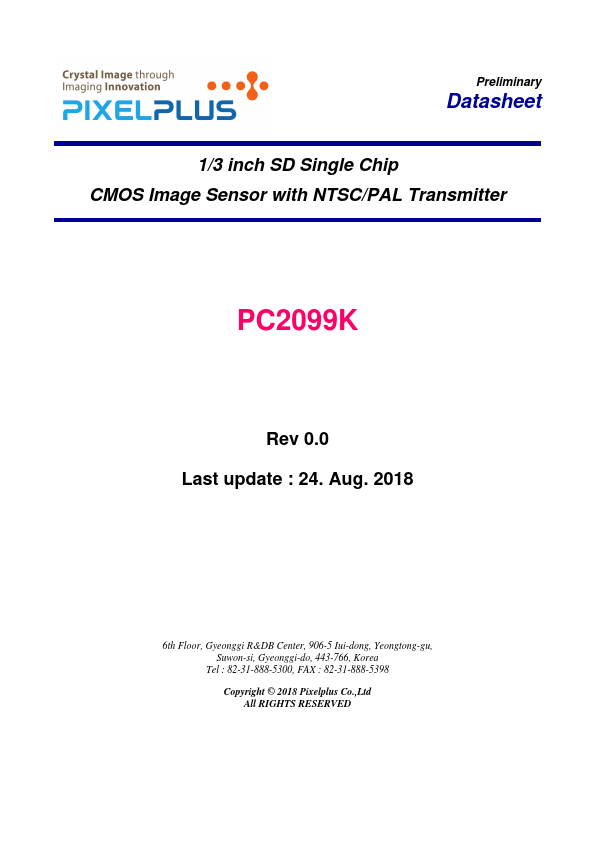

PC2099K - CMOS Image Sensor

The PC2099K by Pixelplus is a CMOS Image Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	PC2099K
Manufacturer	Pixelplus
File Size	1.31 MB
Description	CMOS Image Sensor
Datasheet	PC2099K-Pixelplus.pdf

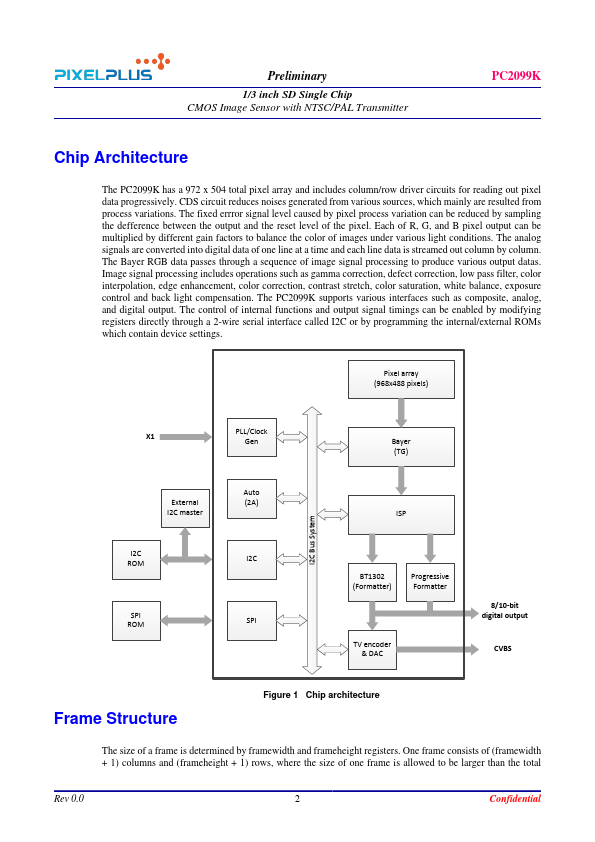

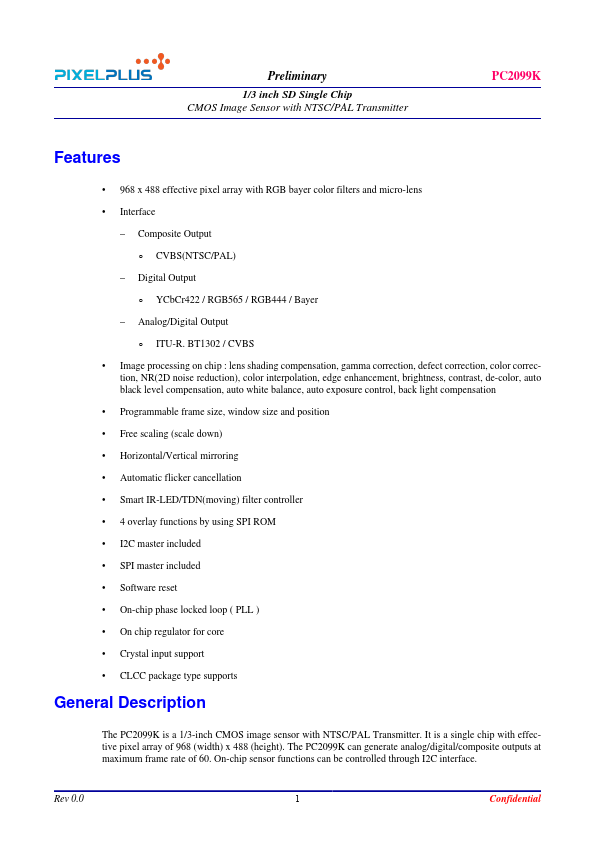

Additional preview pages of the PC2099K datasheet.

The PC2099K is a 1/3-inch CMOS image sensor with NTSC/PAL Transmitter.

968 x 488 effective pixel array with RGB bayer color filters and micro-lens.
Interface.
Composite Output ◦ CVBS(NTSC/PAL).
Digital Output ◦ YCbCr422 / RGB565 / RGB444 / Bayer.
Analog/Digital Output ◦ ITU-R. BT1302 / CVBS.
Image processing on chip : lens shading compensation, gamma correction, defect correction, color correction, NR(2D noise reduction), color interpolation, edge enhancement, brightness, contrast, de-color, auto black level co.
