PC780 - Automotive Plug-In Micro ISO Relay

Name: PC780
SKU: PC780-1578495

Picker

The PC780 by Picker is a Automotive Plug-In Micro ISO Relay. Below is the official datasheet preview.

Datasheet Details

Part number	PC780
Manufacturer	Picker
File Size	164.75 KB
Description	Automotive Plug-In Micro ISO Relay
Datasheet	PC780-Picker.pdf

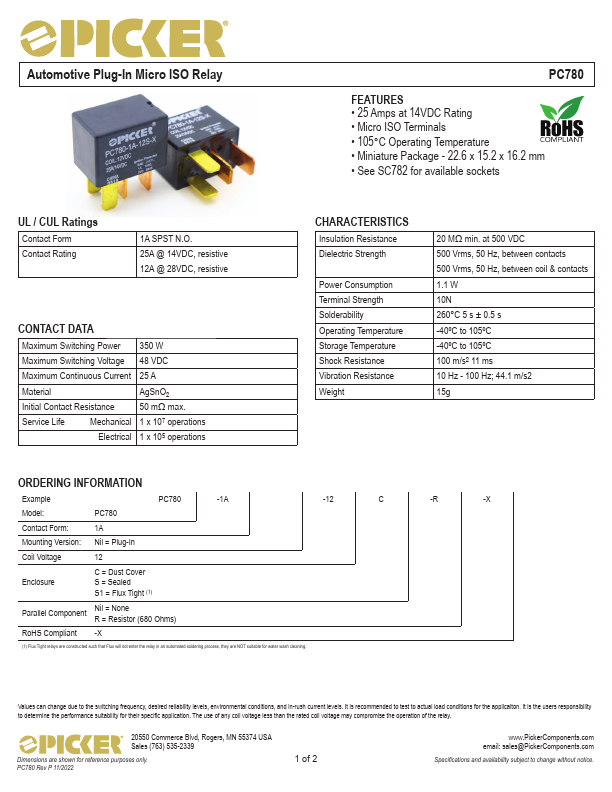

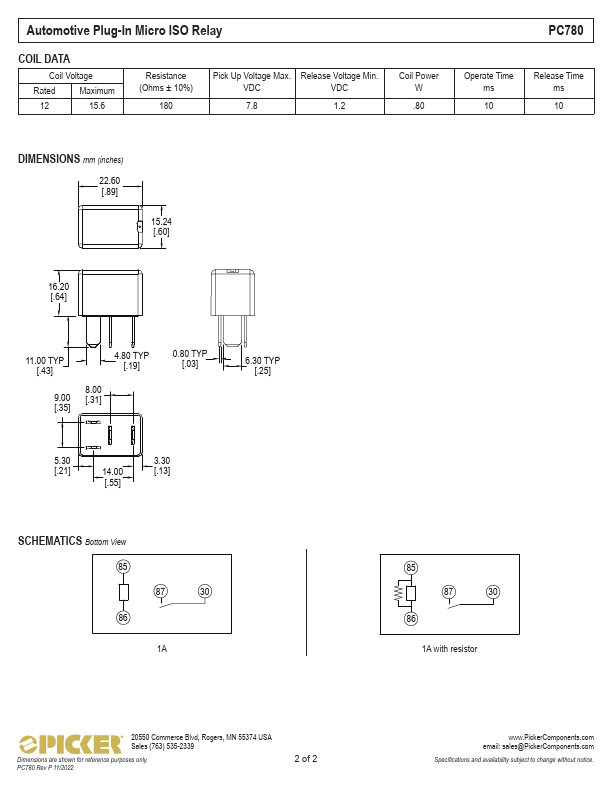

Additional preview pages of the PC780 datasheet.

25 Amps at 14VDC Rating.
Micro ISO Terminals.
105°C Operating Temperature.
Miniature Package - 22.6 x 15.2 x 16.2 mm.
See SC782 for available sockets UL / CUL Ratings Contact Form Contact Rating 1A SPST N. O. 25A @ 14VDC, resistive 12A @ 28VDC, resistive.
