PC520 - 20 Amp Subminature PCB Power Relay

Features

  •  20 A at 125 VAC and 16 A at 277 VAC Contact Rating.
  •  1 HP at 125 VAC and 250 VAC.
  •  80 Amp In Rush Current, TV-8 Rated at 125 VAC.
  •  Class “F” Insulation Standard.
  •  Popular “Sugar Cube” Footprint.
  •  Sealed, Immersion Cleanable.
  •  RoHS Compliant UL / CUL Ratings Contact Normally Open E93379 Normally Closed Inductive Load 1 HP (16 FLA) at 125 VAC 1/2 HP (9.8 FLA) at 125 VAC 1 HP (8 FLA) at 250 VAC 1/2 HP (4.9 FLA) at 250 VAC Resistive Load 20 A at 125 VAC 1.

📥 Download Datasheet

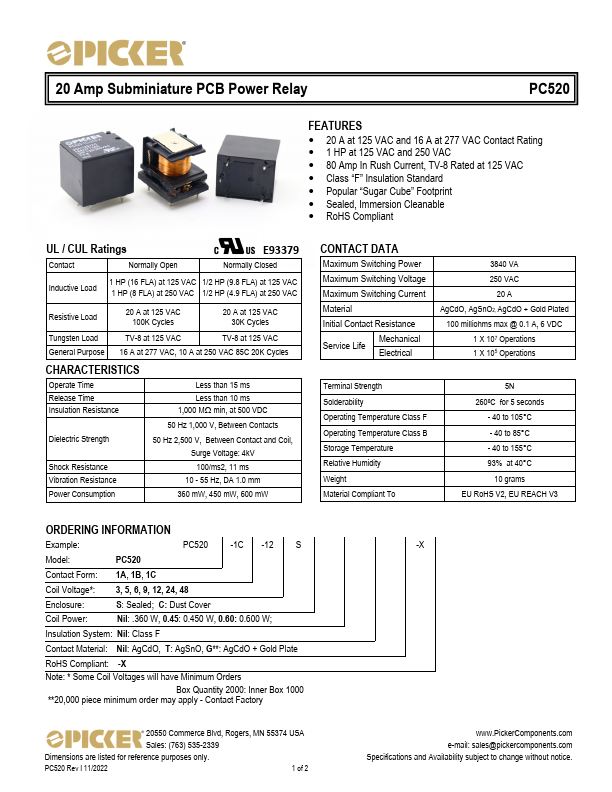

Datasheet preview – PC520

Datasheet Details

Part number PC520
Manufacturer Picker Components
File Size 343.43 KB
Description 20 Amp Subminature PCB Power Relay
Datasheet download datasheet PC520 Datasheet

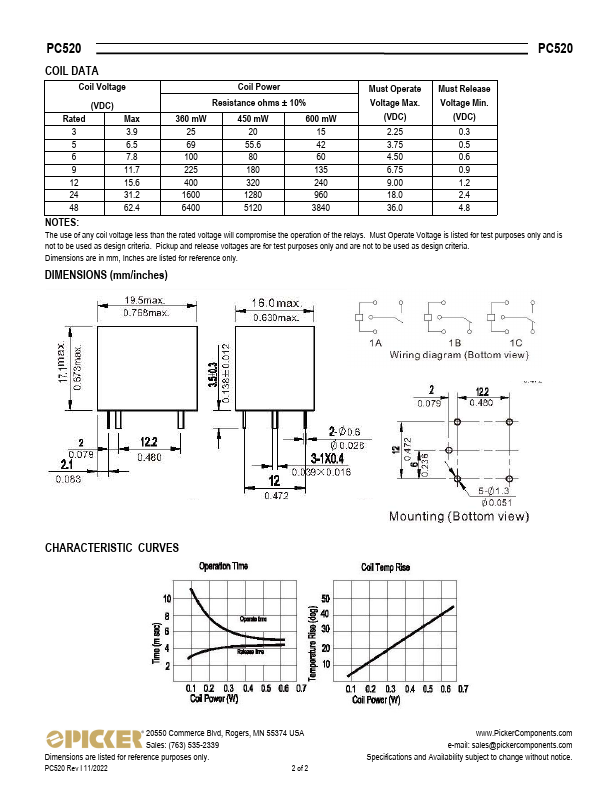

Additional preview pages of the PC520 datasheet.

📁 Similar Datasheet

  • PC521 - 20 Amp Subminiature PCB Power Relay (Picker)
  • PC5-12-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-12-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-12-5 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-24-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-24-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-24-5 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-48-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-48-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-48-5 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
Other Datasheets by Picker Components
  • PC537 - Ultraminiature 30 Amp Automotive PCB-Mounted Relay
  • PC549 - Ultraminiature Automotive PCB Twin Power Relay
  • PC558 - Subminiature Automotive PCB Twin Power Relay
  • PC563 - Ultra Slim 5 Amp Relay
  • PC565 - 25 Amp Ultraminiature Automotive PCB Relay
  • PC566 - Ultraminiature Automotive PCB Twin Power Relay
  • PC567 - Ultraminiature Automotive PCB Twin Power Relay

Full PDF Text Transcription

Click to expand full text
20 Amp Subminiature PCB Power Relay PC520 FEATURES  20 A at 125 VAC and 16 A at 277 VAC Contact Rating  1 HP at 125 VAC and 250 VAC  80 Amp In Rush Current, TV-8 Rated at 125 VAC  Class “F” Insulation Standard  Popular “Sugar Cube” Footprint  Sealed, Immersion Cleanable  RoHS Compliant UL / CUL Ratings Contact Normally Open E93379 Normally Closed Inductive Load 1 HP (16 FLA) at 125 VAC 1/2 HP (9.8 FLA) at 125 VAC 1 HP (8 FLA) at 250 VAC 1/2 HP (4.
