TDA8946AJ - 2 x 15 W BTL audio amplifier

Philips

📥 Download Datasheet

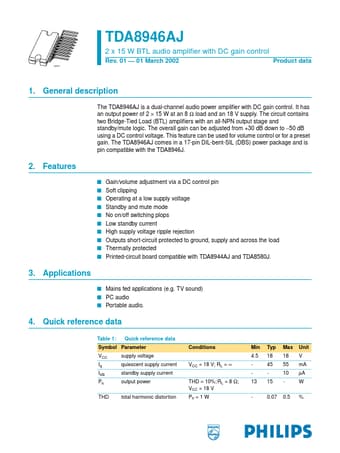

TDA8946AJ Datasheet Preview — Preview of TDA8946AJ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TDA8946AJ
Manufacturer	Philips
File Size	136.79 KB
Description	2 x 15 W BTL audio amplifier
Datasheet	TDA8946AJ-Philips.pdf

TDA8946AJ Product details

Description

The TDA8946AJ is a dual-channel audio power ampliﬁer with DC gain control. 50 dB using a DC control voltage.

Features

s Gain/volume adjustment via a DC control pin s Soft clipping s Operating at a low supply voltage s Standby and mute mode s No on/off switching plops s Low standby current s High supply voltage ripple rejection s Outputs short-circuit protected to ground, supply and across the load s Thermally protected s Printed-circuit board compatible with TDA8944AJ and TDA8580J. 3.
