SAD1009 - Universal DAC

SAD1009 Description

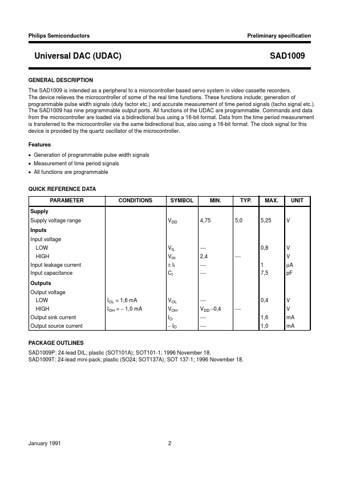

Philips Semiconductors Preliminary speciļ¬cation Universal DAC (UDAC) GENERAL .
SAD1009 The SAD1009 is intended as a peripheral to a microcontroller-based servo system in video cassette recorders.

SAD1009 Features

* Generation of programmable pulse width signals
* Measurement of time period signals
* All functions are programmable QUICK REFERENCE DATA PARAMETER Supply Supply voltage range Inputs Input voltage LOW HIGH Input leakage current Input capacitance Outputs Output voltage LOW H

SAD1009 Applications

* where long filter delays are not tolerated. January 1991 6 Philips Semiconductors Preliminary speciļ¬cation Universal DAC (UDAC) Clock frequency SAD1009 The clock signal of the UDAC is derived from the quartz oscillator of the microcontroller. The clock frequency should not exceed 6 MHz. The d
