SAA4970T - Economical video processing IC ECOBENDIC

Name: SAA4970T
SKU: SAA4970T-484686

Philips

📥 Download Datasheet

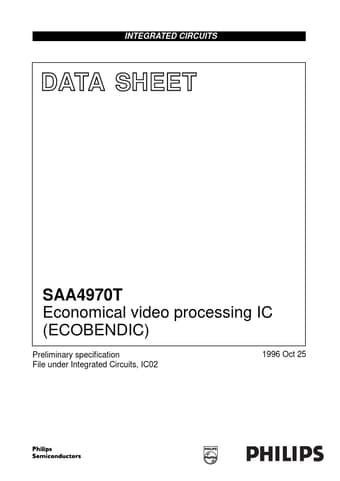

SAA4970T Datasheet Preview — Preview of SAA4970T PDF

Datasheet Details

Part number	SAA4970T
Manufacturer	Philips
File Size	179.59 KB
Description	Economical video processing IC ECOBENDIC
Datasheet	SAA4970T_PhilipsSemiconductors.pdf

SAA4970T Product details

Description

SAA4970T The ECOBENDIC is an economical video processing IC (Economical Back End IC) for double scan conversion.It consists of sync/memory control, video enhancing

Features

Digital horizontal PLL.
Digital CTI (DCTI).
Digital luminance peaking.
Digital phase compensation filter.
D/A conversion.
Simple multi picture processing.
Coloured frame generation.
Memory/sync processing. QUICK.
