SA626 - Low voltage high performance mixer FM IF system with high-speed RSSI

Philips

📥 Download Datasheet

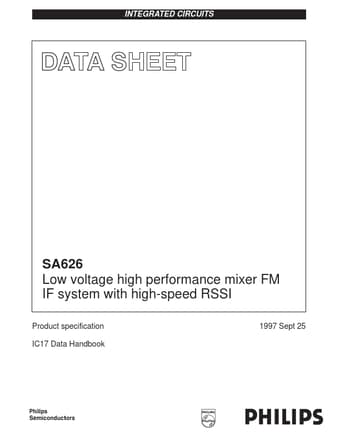

SA626 Datasheet Preview — Preview of SA626 PDF

Datasheet Details

Part number	SA626
Manufacturer	Philips
File Size	231.77 KB
Description	Low voltage high performance mixer FM IF system with high-speed RSSI
Datasheet	SA626_PhilipsSemiconductors.pdf

SA626 Product details

Description

The SA626 is a low-voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, high speed logarithmic received signal strength indicator (RSSI), voltage regulator and audio and fast RSSI op amps.

Features

Mixer input to >500MHz.
Mixer conversion power gain of 11dB at 240MHz.
Mixer noise figure of 14dB at 240MHz.
XTAL oscillator effective to 150MHz (L. C. oscillator to 1GHz, local oscillator can be injected) Figure 1. Pin Configuration.
92dB of IF Amp/Limiter power gain.
25MHz limiter small signal bandwidth.
Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB.
