SA2420 Low voltage RF transceiver . 2.45GHz

SA2420 Description

INTEGRATED CIRCUITS SA2420 Low voltage RF transceiver * 2.45GHz Product specification 1997 May 23 Philips Semiconductors Philips Semiconduc.
The SA2420 transceiver is a combined low-noise amplifier, receive mixer, transmit mixer and LO buffer IC designed for high-performance low-power commu.

SA2420 Features

* Low current consumption: 37mA nominal transmit mode and 22mA nominal receive mode
* Fabricated on a high volume, rugged BiCMOS technology
* High system power gain: 22.5dB (LNA + Mixer) at 2.45GHz
* TSSOP24 package
* Excellent gain stability versus temperat

SA2420 Applications

* The LNA has a 2.5dB noise figure at 2.45GHz with 14dB gain and an IP3 intercept of -3dBm at the input. The gain is stabilized by on-chip compensation to vary less than ±0.2dB over the -40 to +85°C temperature range. The wide-dynamic-range receive mixer has a 10.9dB noise figure and an input IP3 of

📥 Download Datasheet

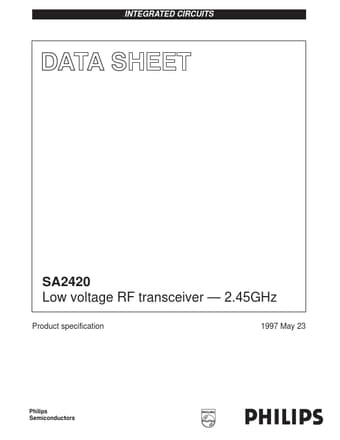

Preview of SA2420 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA2420
Manufacturer
Philips
File Size
133.48 KB
Datasheet
SA2420_PhilipsSemiconductors.pdf
Description
Low voltage RF transceiver . 2.45GHz
