SA1638BE Low voltage IF I/Q transceiver

SA1638BE Description

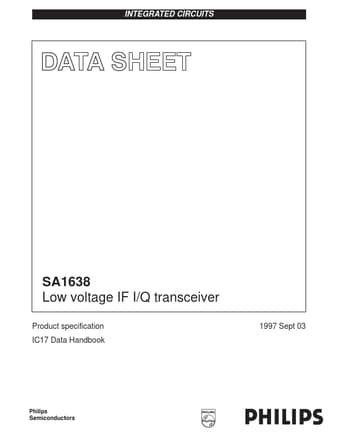

INTEGRATED CIRCUITS SA1638 Low voltage IF I/Q transceiver Product specification IC17 Data Handbook 1997 Sept 03 Philips Semiconductors Philips Semi.
The SA1638 is a combined Rx and Tx IF I/Q circuit.

SA1638BE Applications

* Direct supply: 3.3V to 7.5V
* Two DC regulators giving 3.0V output
* Low current consumption: 18mA for Rx or 22mA for Tx
* Input/output IF frequency from 70-400 MHz
* Internal IF PLL for synthesizing the local oscillator signal PIN CONFIGURATION
