BY223 Datasheet (Philips) - PARALLEL-EFFICIENCY AND ENERGY-RECOVERY DIODE

BY223, PARALLEL-EFFICIENCY AND ENERGY-RECOVERY DIODE

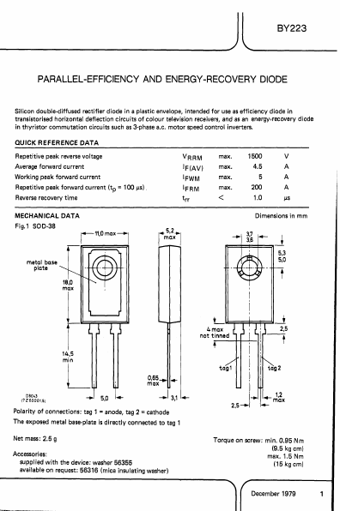

_ _ _ _ _ _ _ 'Jl___BY_223_ PARALLEL-EFFICIENCY AND ENERGY-RECOVERY DIODE Silicon double-diffused rectifier diode in a plastic envelope, intended for use as efficiency diode in transistorised horizontal deflection circuits of colour television receivers, and as an energy"recovery diode in thyristor commutation circuits such as 3-phase a.c.

motor speed control inverters.

QUICK REFERENCE DATA Repetitive peak reverse voltage Average forward current Working peak forward current R
