BTH151S-650R - Thyristor

Description

Passivated thyristor in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BTH151S-650R Thyristor NXP
BTH50015-1LUA smart high-side power switch Infineon
BTH50030-1LUA smart high-side power switch Infineon
BTH50060-1LUA smart high-side power switch Infineon

Other Datasheets by Philips Semiconductors (now NXP Semiconductors)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

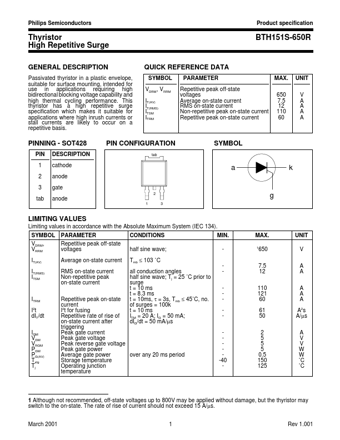

Philips Semiconductors Thyristor High Repetitive Surge Product specification BTH151S-650R GENERAL DESCRIPTION Passivated thyristor in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. This thyristor has a high repetitive surge specification which makes it suitable for applications where high inrush currents or stall currents are likely to occur on a repetitive basis. QUICK REFERENCE DATA SYMBOL PARAMETER MAX. UNIT VDRM, VRRM IT(AV) IT(RMS) ITSM ITRM Repetitive peak off-state voltages Average on-state current RMS on-state current Non-repetitive peak on-state current Repetitive peak on-state current 650 7.
