74F244B - Octal buffers

Description

The 74F244 is an octal buffer that is ideal for driving bus lines of buffer memory address registers.

The outputs are all capable of sinking 64mA and sourcing up to 15mA, producing very good capacitive drive characteristics.

Features

  • Octal bus interface.
  • 3-State output buffer sink 64mA.
  • 15mA source current.
  • Guaranteed output skew less than 2.0ns (74F244B).
  • Reduced ground bounce (74F244B).
  • Reduced ICC (74F244B).
  • Reduced loading (74F244B IIL = 40µA).
  • Split lead frame offers increased noise immunity (74F244B).
  • Industrial temperature range available (-40°C to +85°C) for 74F244.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74F244 Octal Buffers/Line Drivers National Semiconductor
74F244 Octal Buffers/Line Drivers Texas Instruments
74F244 Octal Buffers/Line Drivers Fairchild
74F240 Octal Buffers/Line Drivers Fairchild
74F240 Octal Buffers/Line Drivers National

Other Datasheets by Philips Semiconductors (now NXP Semiconductors)

Part Number Description
74F244 Octal buffers
74F240 Octal inverter buffer
74F240A Octal inverter buffer
74F241 Octal buffer
74F241 Octal buffer

Full PDF Text Transcription

Click to expand full text

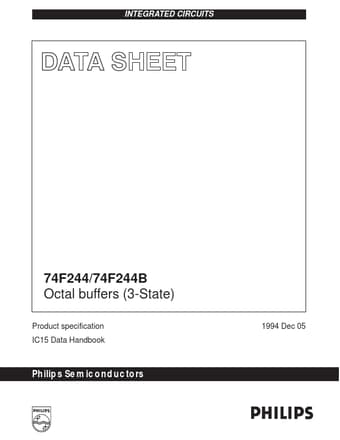

INTEGRATED CIRCUITS 74F244/74F244B Octal buffers (3-State) Product specification IC15 Data Handbook 1994 Dec 05 Philips Semiconductors Philips Semiconductors Product specification Octal buffers (3-State) 74F244/74F244B FEATURES • Octal bus interface • 3-State output buffer sink 64mA • 15mA source current • Guaranteed output skew less than 2.0ns (74F244B) • Reduced ground bounce (74F244B) • Reduced ICC (74F244B) • Reduced loading (74F244B IIL = 40µA) • Split lead frame offers increased noise immunity (74F244B) • Industrial temperature range available (-40°C to +85°C) for 74F244 DESCRIPTION The 74F244 is an octal buffer that is ideal for driving bus lines of buffer memory address registers.
