232266xxxxx1 - Thermistors

Download the 232266xxxxx1 datasheet PDF. This datasheet also covers the 232266211813 variant, as both devices belong to the same thermistors family and are provided as variant models within a single manufacturer datasheet.

General Description

These directly heated thermistors have a positive temperature coefficient and are primarily intended for overload protection.

They consist of a naked disc or with two tinned brass leads.

2322 66.

Key Features

  • Different voltages to be chosen in function of the.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (232266211813_PhilipsComponents.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 232266xxxxx1
Manufacturer Philips Components
File Size 107.21 KB
Description Thermistors
Datasheet download datasheet 232266xxxxx1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
232266x9xxxx PTC Thermistors Vishay Siliconix
23226605xxxx (232266x5xxxx) PTC Thermistors Vishay Siliconix
23226615xxxx (232266x5xxxx) PTC Thermistors Vishay Siliconix
23226625xxxx (232266x5xxxx) PTC Thermistors Vishay Siliconix
232266293074 PTC Thermistors Vishay Siliconix

Other Datasheets by Philips Components

Part Number Description
232266xxxxx0 Thermistors
232266xxxxx3 Thermistors
232266211813 Thermistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

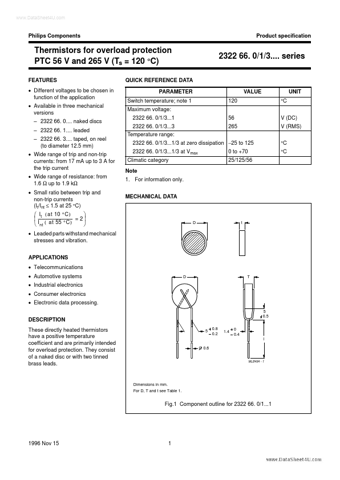

www.DataSheet4U.com Philips Components Product specification Thermistors for overload protection PTC 56 V and 265 V (Ts = 120 °C) FEATURES • Different voltages to be chosen in function of the application • Available in three mechanical versions – 2322 66. 0.... naked discs – 2322 66. 1.... leaded – 2322 66. 3.... taped, on reel (to diameter 12.5 mm) • Wide range of trip and non-trip currents: from 17 mA up to 3 A for the trip current • Wide range of resistance: from 1.6 Ω up to 1.9 kΩ • Small ratio between trip and non-trip currents (It/Int ≤ 1.5 at 25 °C)  I t ( at 10 ° C )   -------------------------------------- = 2  I nt ( at 55 ° C )  • Leaded parts withstand mechanical stresses and vibration.
