GARSL2506, GARL2501 - High Voltage Button Diodes

📥 Download Datasheet

GARSL2506 Datasheet Preview — This datasheet PDF includes multiple part numbers: GARSL2506, GARL2501. Please refer to the document for exact specifications by model.

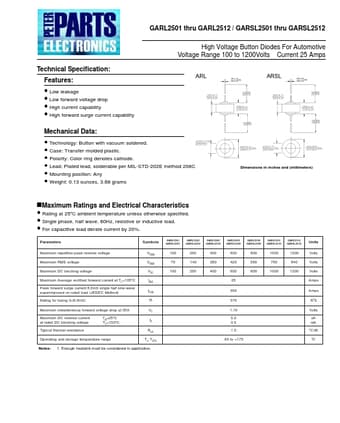

datasheet Preview Page 2

Datasheet Details

Part number	GARSL2506, GARL2501
Manufacturer	Peter Parts
File Size	150.65 KB
Description	High Voltage Button Diodes
Datasheet	GARL2501-PeterParts.pdf
Note	This datasheet PDF includes multiple part numbers: GARSL2506, GARL2501. Please refer to the document for exact specifications by model.

GARSL2506 Product details

Features

Low leakage.
Low forward voltage drop.
High current capability.
High forward surge current capability High Voltage Button Diodes For Automotive Voltage Range 100 to 1200Volts Current 25 Amps Mechanical Data:.
Technology: Button with vacuum soldered.
Case: Transfer molded plastic.
Polarity: Color ring denotes cathode.
Lead: Plated lead, solderable per MIL-STD-202E method 208C.
Mounting position: Any.
Weight: 0.13 ounces, 3.68 grams Dimensi.
